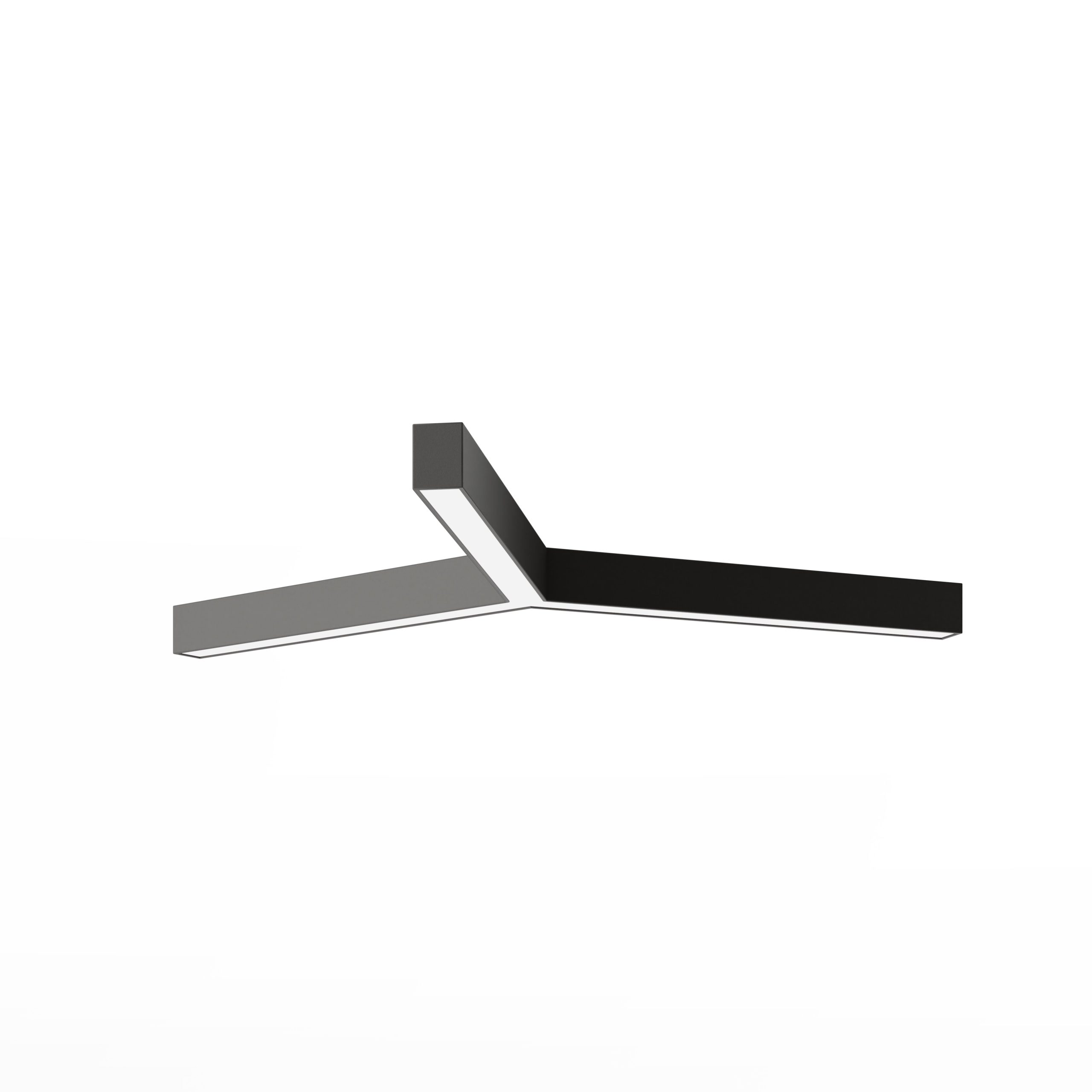

Ceiling light in anodized aluminum with satin finish, available in black and white. The lamp is equipped with a long-life converter with low power loss and constant current, in accordance with ENEC standards. The lighting is powered by reliable LED modules from well-known brands. Perfect for various environments such as shopping malls, supermarkets, offices, meeting rooms, shops, hospitals, schools and corridors. Options include dimmable DALI Driver and an emergency light function.

Art nr.	Se artiklar >
Färg	Black Ral-9005 \| White RAL-9003
Montering	Ditch roof
Effekt (Watt)	39W \| 60W \| - 79W \| 99W
Styrning	DALI \| ND (On/Off)
Färgtemperatur (CCT)	3000K \| 4000K
Lumen (lm)	3880lm \| 5815lm \| - 7755lm \| 9690lm
IP-class	IP40
Längd	994mm\|1472mm\| - 1951mm\|2430mm
Bredd	870mm\|1267mm\| - 1663mm\|2060mm
Höjd	90mm
Profilmått Bxh	70×90
Dimensions	N/A
Markings	5 Year Warranty \| F-market \| SDCM3

visa filter

Art. nr	Färg	Effekt	Styrning	CCT	Lumen	Längd	Bredd	Höjd	Profilmått Bxh
90530-05-7-3	Black Ral-9005	39W	DALI	3000K	3880 lm	994 mm	870 mm	90 mm	70x90 mm
90530-05-3	Black Ral-9005	39W	ND (On/Off)	3000K	3880 lm	994 mm	870 mm	90 mm	70x90 mm
90530-05-7-4	Black Ral-9005	39W	DALI	4000K	3880 lm	994 mm	870 mm	90 mm	70x90 mm
90530-05-4	Black Ral-9005	39W	ND (On/Off)	4000K	3880 lm	994 mm	870 mm	90 mm	70x90 mm
90531-05-7-3	Black Ral-9005	60W	DALI	3000K	5815 lm	1472 mm	1267 mm	90 mm	70x90 mm
90531-05-3	Black Ral-9005	60W	ND (On/Off)	3000K	5815 lm	1472 mm	1267 mm	90 mm	70x90 mm
90531-05-7-4	Black Ral-9005	60W	DALI	4000K	5815 lm	1472 mm	1267 mm	90 mm	70x90 mm
90531-05-4	Black Ral-9005	60W	ND (On/Off)	4000K	5815 lm	1472 mm	1267 mm	90 mm	70x90 mm
90532-05-7-3	Black Ral-9005	79W	DALI	3000K	7755 lm	1951 mm	1663 mm	90 mm	70x90 mm
90532-05-3	Black Ral-9005	79W	ND (On/Off)	3000K	7755 lm	1951 mm	1663 mm	90 mm	70x90 mm
90532-05-7-4	Black Ral-9005	79W	DALI	4000K	7755 lm	1951 mm	1663 mm	90 mm	70x90 mm
90532-05-4	Black Ral-9005	79W	ND (On/Off)	4000K	7755 lm	1951 mm	1663 mm	90 mm	70x90 mm
90533-05-7-3	Black Ral-9005	99W	DALI	3000K	9690 lm	2430 mm	2060 mm	90 mm	70x90 mm
90533-05-3	Black Ral-9005	99W	ND (On/Off)	3000K	9690 lm	2430 mm	2060 mm	90 mm	70x90 mm
90533-05-7-4	Black Ral-9005	99W	DALI	4000K	9690 lm	2430 mm	2060 mm	90 mm	70x90 mm
90533-05-4	Black Ral-9005	99W	ND (On/Off)	4000K	9690 lm	2430 mm	2060 mm	90 mm	70x90 mm
90530-03-7-3	White RAL-9003	39W	DALI	3000K	3880 lm	994 mm	870 mm	90 mm	70x90 mm
90530-03-3	White RAL-9003	39W	ND (On/Off)	3000K	3880 lm	994 mm	870 mm	90 mm	70x90 mm
90530-03-7-4	White RAL-9003	39W	DALI	4000K	3880 lm	994 mm	870 mm	90 mm	70x90 mm
90530-03-4	White RAL-9003	39W	ND (On/Off)	4000K	3880 lm	994 mm	870 mm	90 mm	70x90 mm
90531-03-7-3	White RAL-9003	60W	DALI	3000K	5815 lm	1472 mm	1267 mm	90 mm	70x90 mm
90531-03-3	White RAL-9003	60W	ND (On/Off)	3000K	5815 lm	1472 mm	1267 mm	90 mm	70x90 mm
90531-03-7-4	White RAL-9003	60W	DALI	4000K	5815 lm	1472 mm	1267 mm	90 mm	70x90 mm
90531-03-4	White RAL-9003	60W	ND (On/Off)	4000K	5815 lm	1472 mm	1267 mm	90 mm	70x90 mm
90532-03-7-3	White RAL-9003	79W	DALI	3000K	7755 lm	1951 mm	1663 mm	90 mm	70x90 mm
90532-03-3	White RAL-9003	79W	ND (On/Off)	3000K	7755 lm	1951 mm	1663 mm	90 mm	70x90 mm
90532-03-7-4	White RAL-9003	79W	DALI	4000K	7755 lm	1951 mm	1663 mm	90 mm	70x90 mm
90532-03-4	White RAL-9003	79W	ND (On/Off)	4000K	7755 lm	1951 mm	1663 mm	90 mm	70x90 mm
90533-03-7-3	White RAL-9003	99W	DALI	3000K	9690 lm	2430 mm	2060 mm	90 mm	70x90 mm
90533-03-7-3	White RAL-9003	99W	DALI	3000K	9690 lm	2430 mm	2060 mm	90 mm	70x90 mm
90533-03-3	White RAL-9003	99W	ND (On/Off)	3000K	9690 lm	2430 mm	2060 mm	90 mm	70x90 mm
90533-03-3	White RAL-9003	99W	ND (On/Off)	3000K	9690 lm	2430 mm	2060 mm	90 mm	70x90 mm
90533-03-7-4	White RAL-9003	99W	DALI	4000K	9690 lm	2430 mm	2060 mm	90 mm	70x90 mm
90533-03-7-4	White RAL-9003	99W	DALI	4000K	9690 lm	2430 mm	2060 mm	90 mm	70x90 mm
90533-03-4	White RAL-9003	99W	ND (On/Off)	4000K	9690 lm	2430 mm	2060 mm	90 mm	70x90 mm
90533-03-4	White RAL-9003	99W	ND (On/Off)	4000K	9690 lm	2430 mm	2060 mm	90 mm	70x90 mm
