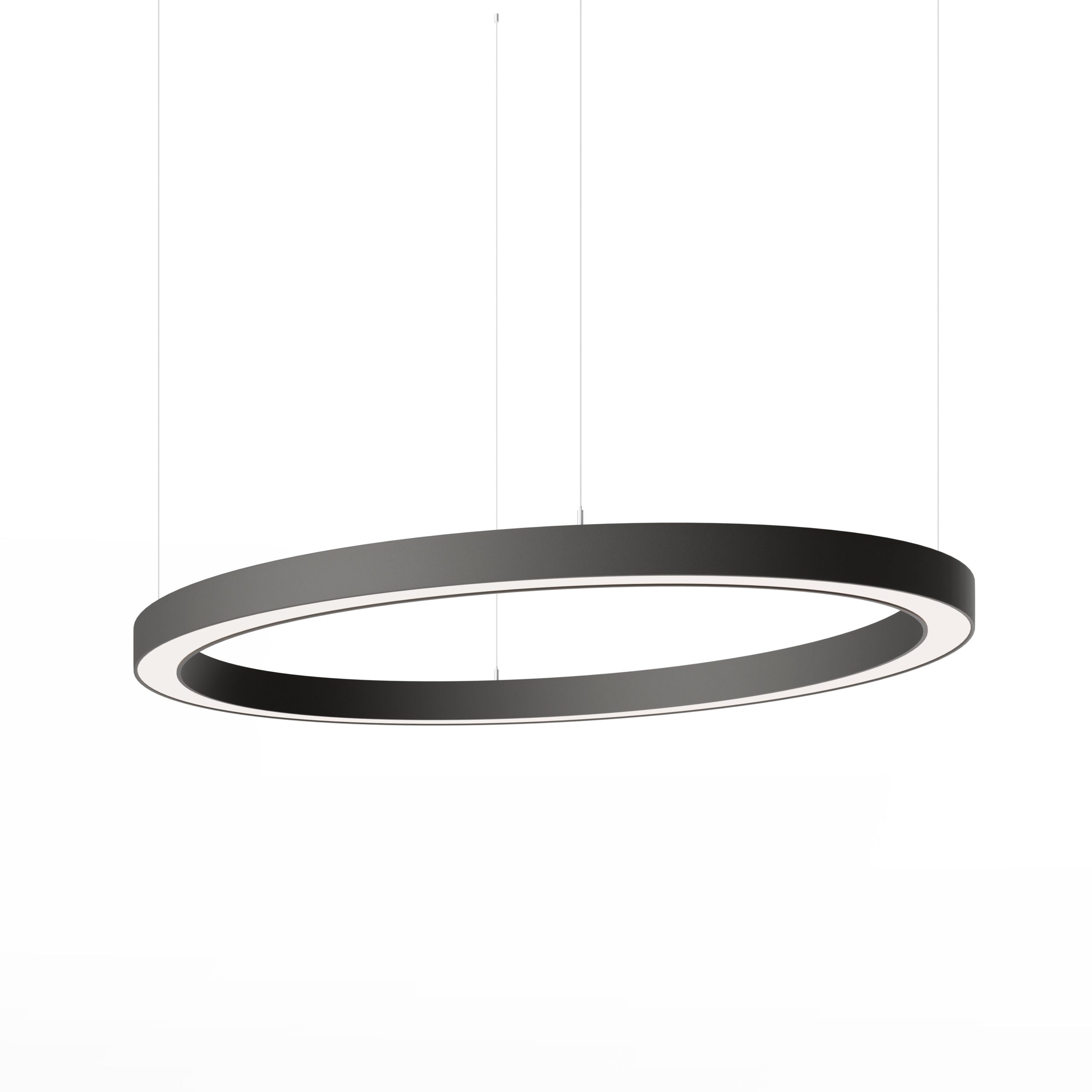

BOLA ELIPS LED

Pendant elliptical LED luminaire for indoor installation suitable for offices, shops, institutions, corridors etc. Available in white and black with control options DALI or ND (non-dimmable). Available in several color temperatures.

BOLA ELIPS LED
BOLA ELIPS LED

Elliptical luminaire made of anodized aluminium with satin finish, available in black or white color. The converter is designed for long life and low power loss, with constant current and compatible with ENEC standards. Suspension consists of 1 mm steel wire and nickel-plated brass components. Adjustable suspension, transparent electrical cable and ceiling mounted electrical junction box with aesthetic design.

Color options: black, white. suitable for areas such as shopping centers, supermarkets, offices, meeting rooms, shops, hospitals, schools, corridors. Optional: dimmable DALI driver, emergency kit.

Art nr. Se artiklar >
Användningsområden

material

Aluminum
Färg

Black Ral-9005

|

White RAL-9003
Optik

KO -Opal Diffuser
Montering

Pendant lights
watt

79

|

120

|

105

|

160
Styrning

DALI

|

ND (On/Off)
Färgtemperatur (CCT) 2700K | 3000K | - 4000K | 6500K
Lumen (lm) 7755lm | 10340lm | - 11670lm | 15560lm
CRI

80+
IP-class

IP40
Längd 1620mm|2006mm
Bredd 576mm|956mm
Höjd 73mm
Dimensions N/A
Markings

|

|

Vikt 3.9kg|5.1kg| - 6.5kg|7.7kg
döljvisa filter

Art. nr

Färg

Effekt

Styrning

CCT

Lumen

Längd

Bredd

Höjd

Vikt

90316-05-7-3Black Ral-900579WDALI3000K7755 lm1620 mm576 mm73 mm3.9 kg
90316-05-3Black Ral-900579WND (On/Off)3000K7755 lm1620 mm576 mm73 mm3.9 kg
90316-05-7-4Black Ral-900579WDALI4000K7755 lm1620 mm576 mm73 mm3.9 kg
90316-05-4Black Ral-900579WND (On/Off)4000K7755 lm1620 mm576 mm73 mm3.9 kg
90317-05-7-3Black Ral-9005105WDALI3000K10340 lm2006 mm956 mm73 mm6.5 kg
90317-05-3Black Ral-9005105WND (On/Off)3000K10340 lm2006 mm956 mm73 mm6.5 kg
90317-05-7-4Black Ral-9005105WDALI4000K10340 lm2006 mm956 mm73 mm6.5 kg
90317-05-4Black Ral-9005105WND (On/Off)4000K10340 lm2006 mm956 mm73 mm6.5 kg
90318-05-7-3Black Ral-9005120WDALI3000K11670 lm1620 mm576 mm73 mm5.1 kg
90318-05-3Black Ral-9005120WND (On/Off)3000K11670 lm1620 mm576 mm73 mm5.1 kg
90318-05-7-4Black Ral-9005120WDALI4000K11670 lm1620 mm576 mm73 mm5.1 kg
90318-05-4Black Ral-9005120WND (On/Off)4000K11670 lm1620 mm576 mm73 mm5.1 kg
90319-05-7-3Black Ral-9005160WDALI3000K15560 lm2006 mm956 mm73 mm7.7 kg
90319-05-3Black Ral-9005160WND (On/Off)3000K15560 lm2006 mm956 mm73 mm7.7 kg
90319-05-7-4Black Ral-9005160WDALI4000K15560 lm2006 mm956 mm73 mm7.7 kg
90319-05-4Black Ral-9005160WND (On/Off)4000K15560 lm2006 mm956 mm73 mm7.7 kg
90316-03-7-3White RAL-900379WDALI3000K7755 lm1620 mm576 mm73 mm3.9 kg
90316-03-3White RAL-900379WND (On/Off)3000K7755 lm1620 mm576 mm73 mm3.9 kg
90316-03-7-4White RAL-900379WDALI4000K7755 lm1620 mm576 mm73 mm3.9 kg
90316-03-4White RAL-900379WND (On/Off)4000K7755 lm1620 mm576 mm73 mm3.9 kg
90317-03-7-3White RAL-9003105WDALI3000K10340 lm2006 mm956 mm73 mm6.5 kg
90317-03-3White RAL-9003105WND (On/Off)3000K10340 lm2006 mm956 mm73 mm6.5 kg
90317-03-7-4White RAL-9003105WDALI4000K10340 lm2006 mm956 mm73 mm6.5 kg
90317-03-4White RAL-9003105WND (On/Off)4000K10340 lm2006 mm956 mm73 mm6.5 kg
90318-03-7-3White RAL-9003120WDALI3000K11670 lm1620 mm576 mm73 mm5.1 kg
90318-03-3White RAL-9003120WND (On/Off)3000K11670 lm1620 mm576 mm73 mm5.1 kg
90318-03-7-4White RAL-9003120WDALI4000K11670 lm1620 mm576 mm73 mm5.1 kg
90318-03-4White RAL-9003120WND (On/Off)4000K11670 lm1620 mm576 mm73 mm5.1 kg
90319-03-7-3White RAL-9003160WDALI3000K15560 lm2006 mm956 mm73 mm7.7 kg
90319-03-3White RAL-9003160WND (On/Off)3000K15560 lm2006 mm956 mm73 mm7.7 kg
90319-03-7-4White RAL-9003160WDALI4000K15560 lm2006 mm956 mm73 mm7.7 kg
90319-03-4White RAL-9003160WND (On/Off)4000K15560 lm2006 mm956 mm73 mm7.7 kg
