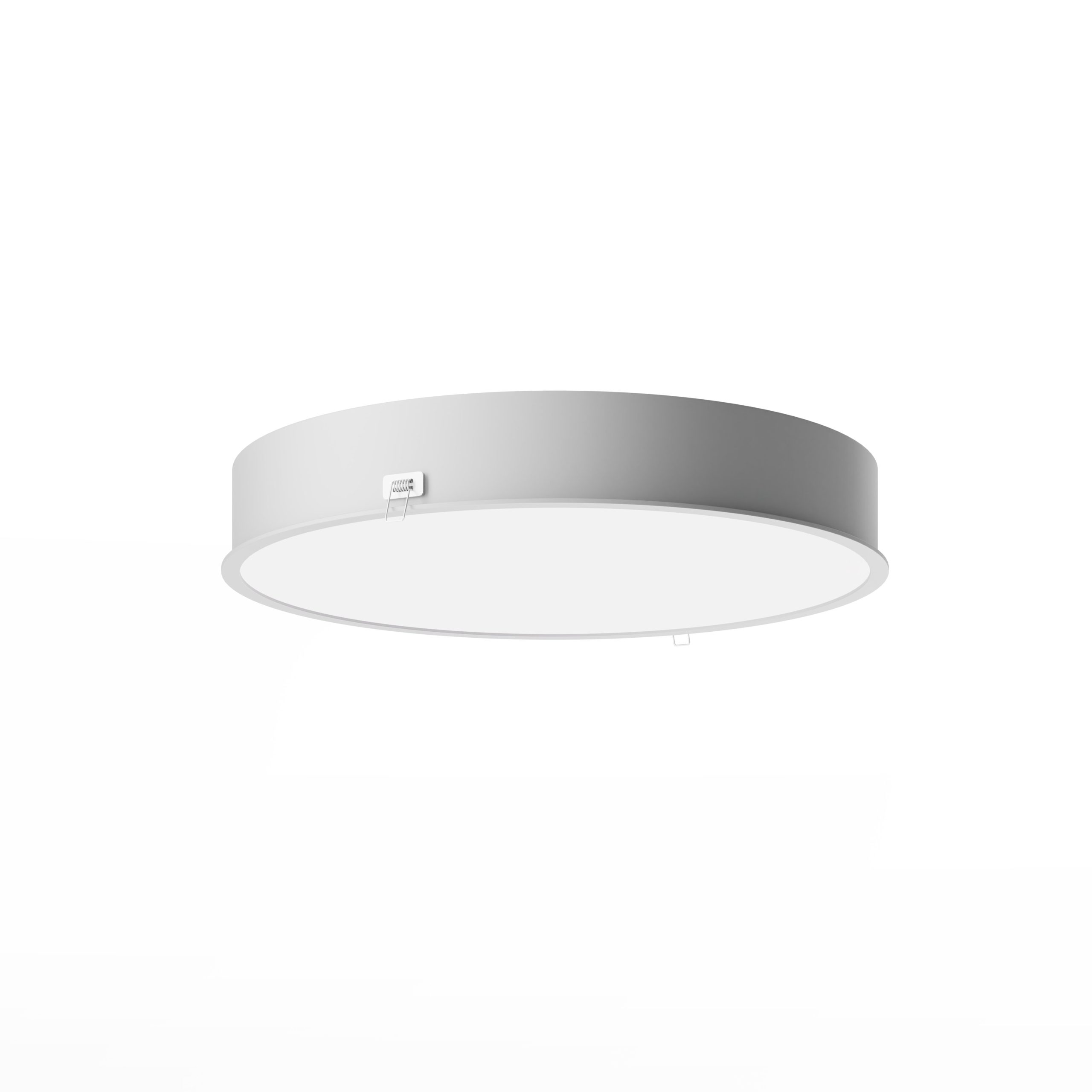

EMPOTRADO MAXI LED

Round recessed luminaire for indoor installation. Suitable for offices, shops, malls, institutions, corridors, etc. Available in white and black with control options DALI or ND (non-dimmable). Available in several color temperatures.

EMPOTRADO MAXI LED
EMPOTRADO MAXI LED

Luminaire made of anodized aluminum with satin finish, available in black or white color with a stylish design. The converter is designed for long life and low power loss, with constant current and compatibility with ENEC standards.

The color options are white and black, and the luminaire fits well in shopping centers, supermarkets, offices, meeting rooms, shops, hospitals and schools.

Optional features include a dimmable DALI driver and an emergency kit for increased flexibility and safety.

Art nr. Se artiklar >
material

Aluminum
Användningsområden

Färg

Black Ral-9005

|

White RAL-9003
Optik

KO -Opal Diffuser
Montering

Recessed
watt

27

|

40

|

83

|

147
Styrning

DALI

|

ND (On/Off)
Färgtemperatur (CCT) 2700K | 3000K | - 4000K | 6500K
Lumen (lm) 2585lm | 3880lm | - 8185lm | 14645lm
CRI

80+
IP-class

IP40
Diameter (mm) 490mm | 620mm | - 920mm | 1220mm
Höjd 93mm
Dimensions N/A
Markings

|

|

Vikt 5kg|6.3kg| - 7kg|9.1kg
döljvisa filter

Art. nr

Färg

Effekt

Styrning

CCT

Lumen

Diameter

Höjd

Vikt

90367-05-7-3Black Ral-900527WDALI3000K2585 lm490 mm93 mm5 kg
90367-05-3Black Ral-900527WND (On/Off)3000K2585 lm490 mm93 mm5 kg
90367-05-7-4Black Ral-900527WDALI4000K2585 lm490 mm93 mm5 kg
90367-05-4Black Ral-900527WND (On/Off)4000K2585 lm490 mm93 mm5 kg
90368-05-7-3Black Ral-900540WDALI3000K3880 lm620 mm93 mm6.3 kg
90368-05-3Black Ral-900540WND (On/Off)3000K3880 lm620 mm93 mm6.3 kg
90368-05-7-4Black Ral-900540WDALI4000K3880 lm620 mm93 mm6.3 kg
90368-05-4Black Ral-900540WND (On/Off)4000K3880 lm620 mm93 mm6.3 kg
90369-05-7-3Black Ral-900583WDALI3000K8185 lm920 mm93 mm7 kg
90369-05-3Black Ral-900583WND (On/Off)3000K8185 lm920 mm93 mm7 kg
90369-05-7-4Black Ral-900583WDALI4000K8185 lm920 mm93 mm7 kg
90369-05-4Black Ral-900583WND (On/Off)4000K8185 lm920 mm93 mm7 kg
90370-05-7-3Black Ral-9005147WDALI3000K14645 lm1220 mm93 mm9.1 kg
90370-05-3Black Ral-9005147WND (On/Off)3000K14645 lm1220 mm93 mm9.1 kg
90370-05-7-4Black Ral-9005147WDALI4000K14645 lm1220 mm93 mm9.1 kg
90370-05-4Black Ral-9005147WND (On/Off)4000K14645 lm1220 mm93 mm9.1 kg
90367-03-7-3White RAL-900327WDALI3000K2585 lm490 mm93 mm5 kg
90367-03-3White RAL-900327WND (On/Off)3000K2585 lm490 mm93 mm5 kg
90367-03-7-4White RAL-900327WDALI4000K2585 lm490 mm93 mm5 kg
90367-03-4White RAL-900327WND (On/Off)4000K2585 lm490 mm93 mm5 kg
90368-03-7-3White RAL-900340WDALI3000K3880 lm620 mm93 mm6.3 kg
90368-03-3White RAL-900340WND (On/Off)3000K3880 lm620 mm93 mm6.3 kg
90368-03-3White RAL-900340WND (On/Off)3000K3880 lm620 mm93 mm6.3 kg
90368-03-7-4White RAL-900340WDALI4000K3880 lm620 mm93 mm6.3 kg
90368-03-7-4White RAL-900340WDALI4000K3880 lm620 mm93 mm6.3 kg
90368-03-4White RAL-900340WND (On/Off)4000K3880 lm620 mm93 mm6.3 kg
90368-03-4White RAL-900340WND (On/Off)4000K3880 lm620 mm93 mm6.3 kg
90369-03-7-3White RAL-900383WDALI3000K8185 lm920 mm93 mm7 kg
90369-03-7-3White RAL-900383WDALI3000K8185 lm920 mm93 mm7 kg
90370-03-3White RAL-9003147WND (On/Off)3000K14645 lm1220 mm93 mm9.1 kg
90370-03-7-4White RAL-9003147WDALI4000K14645 lm1220 mm93 mm9.1 kg
90370-03-7-4White RAL-9003147WDALI4000K14645 lm1220 mm93 mm9.1 kg
90370-03-7-4White RAL-9003147WDALI4000K14645 lm1220 mm93 mm9.1 kg
90370-03-4White RAL-9003147WND (On/Off)4000K14645 lm1220 mm93 mm9.1 kg
90370-03-4White RAL-9003147WND (On/Off)4000K14645 lm1220 mm93 mm9.1 kg

Document (PDF)

PRODUKTBLAD PDF

Ljusfiler (LDT)

90367 3000K
90367 4000K
90368 3000K
90368 4000K
90369 3000K
90369 4000K
90370 3000K
90370 4000K
