ESTRELLA Y MOVIL LED

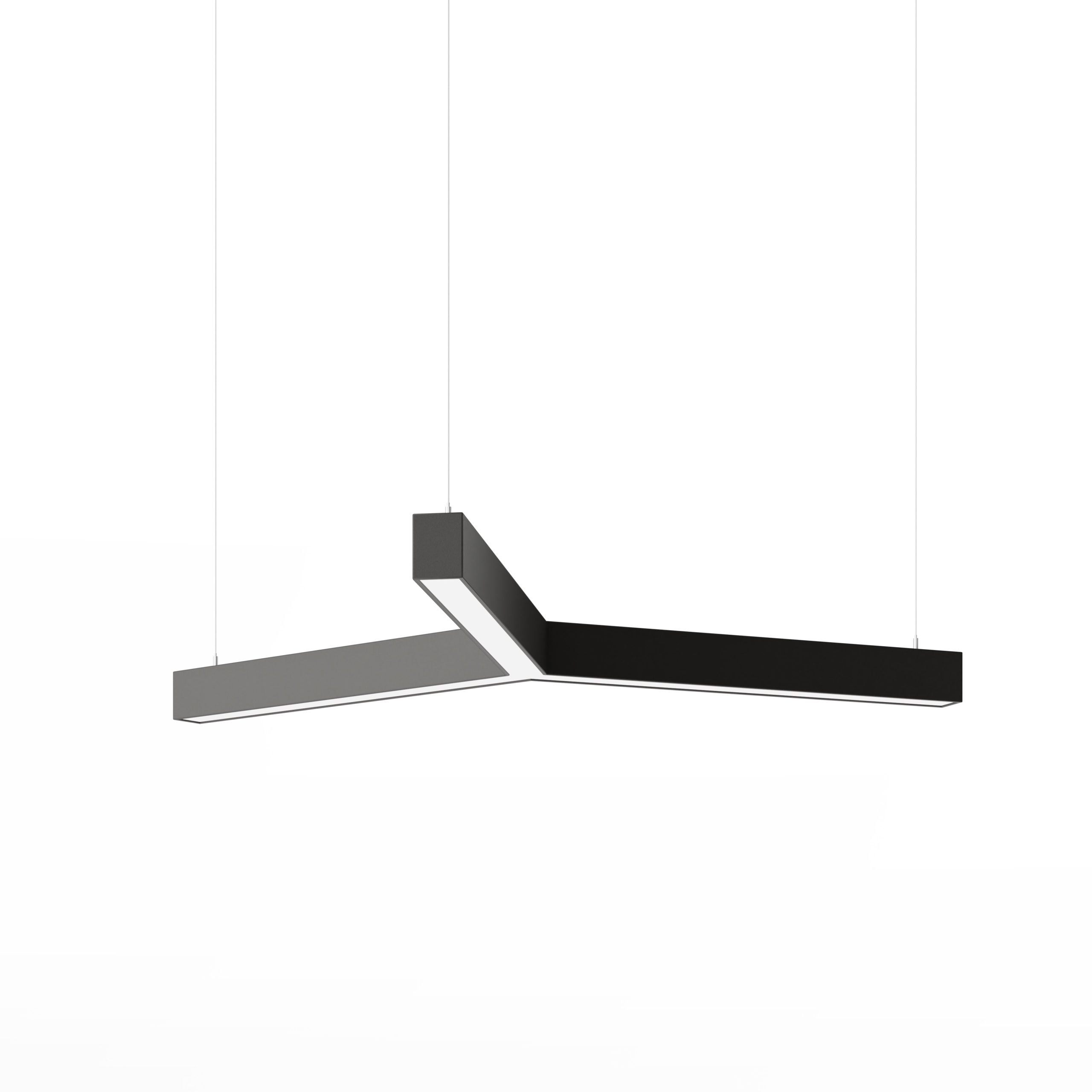

Hanging lamp in anodized aluminum with satin finish, available in black or white. Available in several color temperatures and optional DALI.
Hanging lamp in anodized aluminum with satin finish, available in black or white. The lamp has a long-life converter with low power loss and constant current according to ENEC standards. Powered by reliable LED modules. The suspension system consists of an adjustable 1 mm steel wire and nickel-plated brass components. Includes transparent electrical cable and ceiling mounted electrical junction box with aesthetic design. Suitable for various environments such as shopping malls, supermarkets, offices, meeting rooms, shops, hospitals, schools and corridors. Options include dimmable DALI Driver and an emergency light function.
Art nr. | Se artiklar > |
---|---|
Färg |
Black Ral-9005| White RAL-9003 |
Montering |
Pendant lights |
watt |
39| 60| 79| 99 |
Styrning |
DALI| ND (On/Off) |
Färgtemperatur (CCT) | 3000K|4000K |
Lumen (lm) | 3880lm|5815lm| - 7755lm|9690lm |
IP-class |
IP40 |
Längd | 994mm|1472mm| - 1951mm|2430mm |
Bredd | 870mm|1267mm| - 1663mm|2060mm |
profile-dimensions-wxh |
70×90 |
Dimensions | N/A |
Markings |
döljvisa filter
Art. nr
Färg
Black Ral-9005
White RAL-9003
- Black Ral-9005
- White RAL-9003
Effekt
39
60
79
99
- 39
- 60
- 79
- 99
Styrning
DALI
ND (On/Off)
- DALI
- ND (On/Off)
Färgtemperatur (CCT)
3000K
4000K
- 3000K
- 4000K
Lumen
3880
5815
7755
9690
- 3880
- 5815
- 7755
- 9690
Längd
994
1472
1951
2430
- 994
- 1472
- 1951
- 2430
Bredd
870
1267
1663
2060
- 870
- 1267
- 1663
- 2060
Art. nr:
Färg:
Black Ral-9005
White RAL-9003
Effekt:
39
60
79
99
Styrning:
DALI
ND (On/Off)
CCT:
3000K
4000K
Lumen:
3880
5815
7755
9690
Längd:
994
1472
1951
2430
Bredd:
870
1267
1663
2060
rensa filter
Art. nr | Färg | Effekt | Styrning | CCT | Lumen | Längd | Bredd | Profilmått Bxh |
---|---|---|---|---|---|---|---|---|
90524-05-7-3 | Black Ral-9005 | 39W | DALI | 3000K | 3880 lm | 994 mm | 870 mm | 70x90 mm |
90524-05-3 | Black Ral-9005 | 39W | ND (On/Off) | 3000K | 3880 lm | 994 mm | 870 mm | 70x90 mm |
90524-05-7-4 | Black Ral-9005 | 39W | DALI | 4000K | 3880 lm | 994 mm | 870 mm | 70x90 mm |
90524-05-4 | Black Ral-9005 | 39W | ND (On/Off) | 4000K | 3880 lm | 994 mm | 870 mm | 70x90 mm |
90525-05-7-3 | Black Ral-9005 | 60W | DALI | 3000K | 5815 lm | 1472 mm | 1267 mm | 70x90 mm |
90525-05-3 | Black Ral-9005 | 60W | ND (On/Off) | 3000K | 5815 lm | 1472 mm | 1267 mm | 70x90 mm |
90525-05-7-4 | Black Ral-9005 | 60W | DALI | 4000K | 5815 lm | 1472 mm | 1267 mm | 70x90 mm |
90525-05-4 | Black Ral-9005 | 60W | ND (On/Off) | 4000K | 5815 lm | 1472 mm | 1267 mm | 70x90 mm |
90526-05-7-3 | Black Ral-9005 | 79W | DALI | 3000K | 7755 lm | 1951 mm | 1663 mm | 70x90 mm |
90526-05-3 | Black Ral-9005 | 79W | ND (On/Off) | 3000K | 7755 lm | 1951 mm | 1663 mm | 70x90 mm |
90526-05-7-4 | Black Ral-9005 | 79W | DALI | 4000K | 7755 lm | 1951 mm | 1663 mm | 70x90 mm |
90526-05-4 | Black Ral-9005 | 79W | ND (On/Off) | 4000K | 7755 lm | 1951 mm | 1663 mm | 70x90 mm |
90527-05-7-3 | Black Ral-9005 | 99W | DALI | 3000K | 9690 lm | 2430 mm | 2060 mm | 70x90 mm |
90527-05-3 | Black Ral-9005 | 99W | ND (On/Off) | 3000K | 9690 lm | 2430 mm | 2060 mm | 70x90 mm |
90527-05-7-4 | Black Ral-9005 | 99W | DALI | 4000K | 9690 lm | 2430 mm | 2060 mm | 70x90 mm |
90527-05-4 | Black Ral-9005 | 99W | ND (On/Off) | 4000K | 9690 lm | 2430 mm | 2060 mm | 70x90 mm |
90524-03-7-3 | White RAL-9003 | 39W | DALI | 3000K | 3880 lm | 994 mm | 870 mm | 70x90 mm |
90524-03-3 | White RAL-9003 | 39W | ND (On/Off) | 3000K | 3880 lm | 994 mm | 870 mm | 70x90 mm |
90524-03-7-4 | White RAL-9003 | 39W | DALI | 4000K | 3880 lm | 994 mm | 870 mm | 70x90 mm |
90524-03-4 | White RAL-9003 | 39W | ND (On/Off) | 4000K | 3880 lm | 994 mm | 870 mm | 70x90 mm |
90525-03-7-3 | White RAL-9003 | 60W | DALI | 3000K | 5815 lm | 1472 mm | 1267 mm | 70x90 mm |
90525-03-3 | White RAL-9003 | 60W | ND (On/Off) | 3000K | 5815 lm | 1472 mm | 1267 mm | 70x90 mm |
90525-03-7-4 | White RAL-9003 | 60W | DALI | 4000K | 5815 lm | 1472 mm | 1267 mm | 70x90 mm |
90525-03-4 | White RAL-9003 | 60W | ND (On/Off) | 4000K | 5815 lm | 1472 mm | 1267 mm | 70x90 mm |
90526-03-7-3 | White RAL-9003 | 79W | DALI | 3000K | 7755 lm | 1951 mm | 1663 mm | 70x90 mm |
90526-03-3 | White RAL-9003 | 79W | ND (On/Off) | 3000K | 7755 lm | 1951 mm | 1663 mm | 70x90 mm |
90526-03-7-4 | White RAL-9003 | 79W | DALI | 4000K | 7755 lm | 1951 mm | 1663 mm | 70x90 mm |
90526-03-4 | White RAL-9003 | 79W | ND (On/Off) | 4000K | 7755 lm | 1951 mm | 1663 mm | 70x90 mm |
90527-03-7-3 | White RAL-9003 | 99W | DALI | 3000K | 9690 lm | 2430 mm | 2060 mm | 70x90 mm |
90527-03-3 | White RAL-9003 | 99W | ND (On/Off) | 3000K | 9690 lm | 2430 mm | 2060 mm | 70x90 mm |
90527-03-7-4 | White RAL-9003 | 99W | DALI | 4000K | 9690 lm | 2430 mm | 2060 mm | 70x90 mm |
90527-03-4 | White RAL-9003 | 99W | ND (On/Off) | 4000K | 9690 lm | 2430 mm | 2060 mm | 70x90 mm |
Document (PDF)
PRODUKTBLAD PDF |
