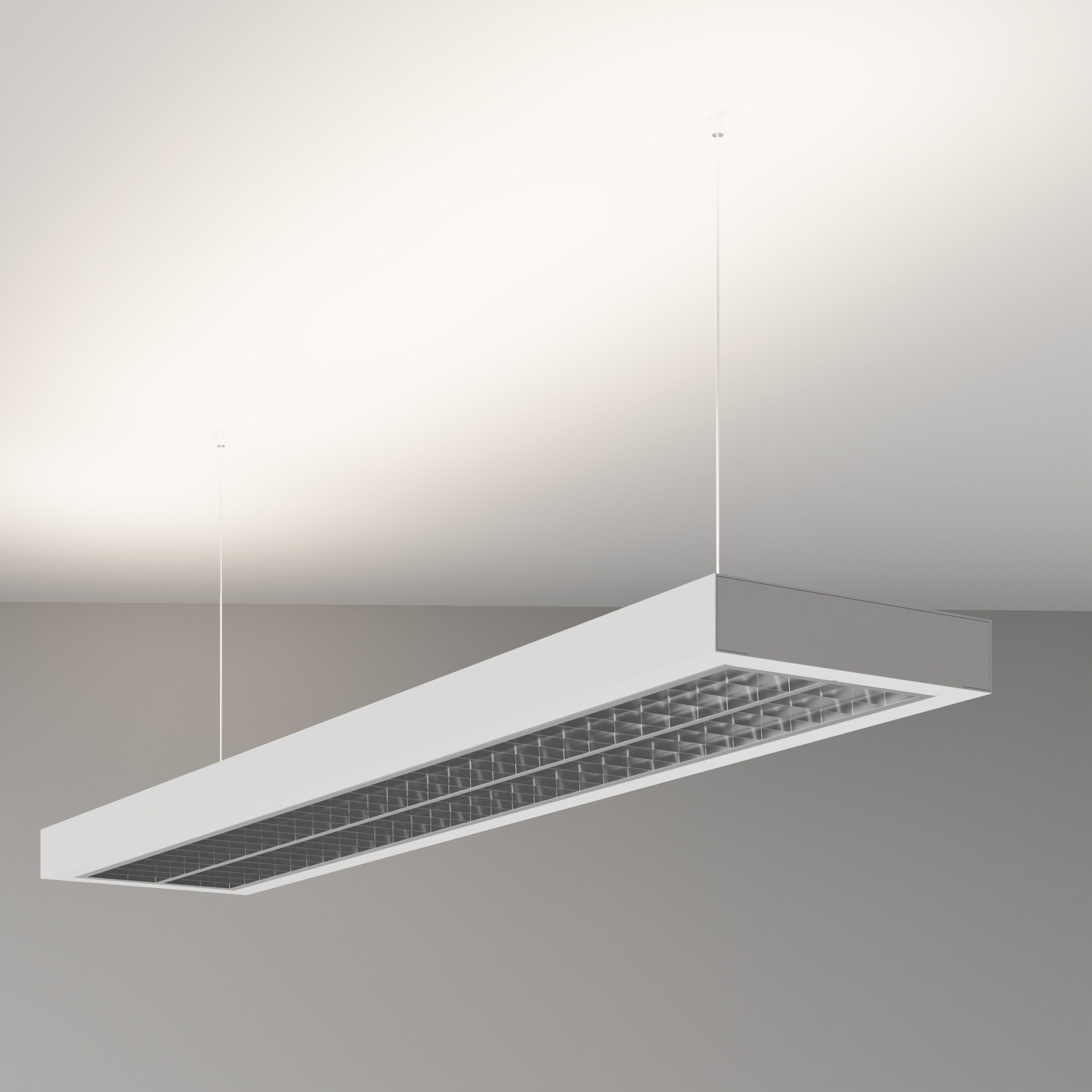

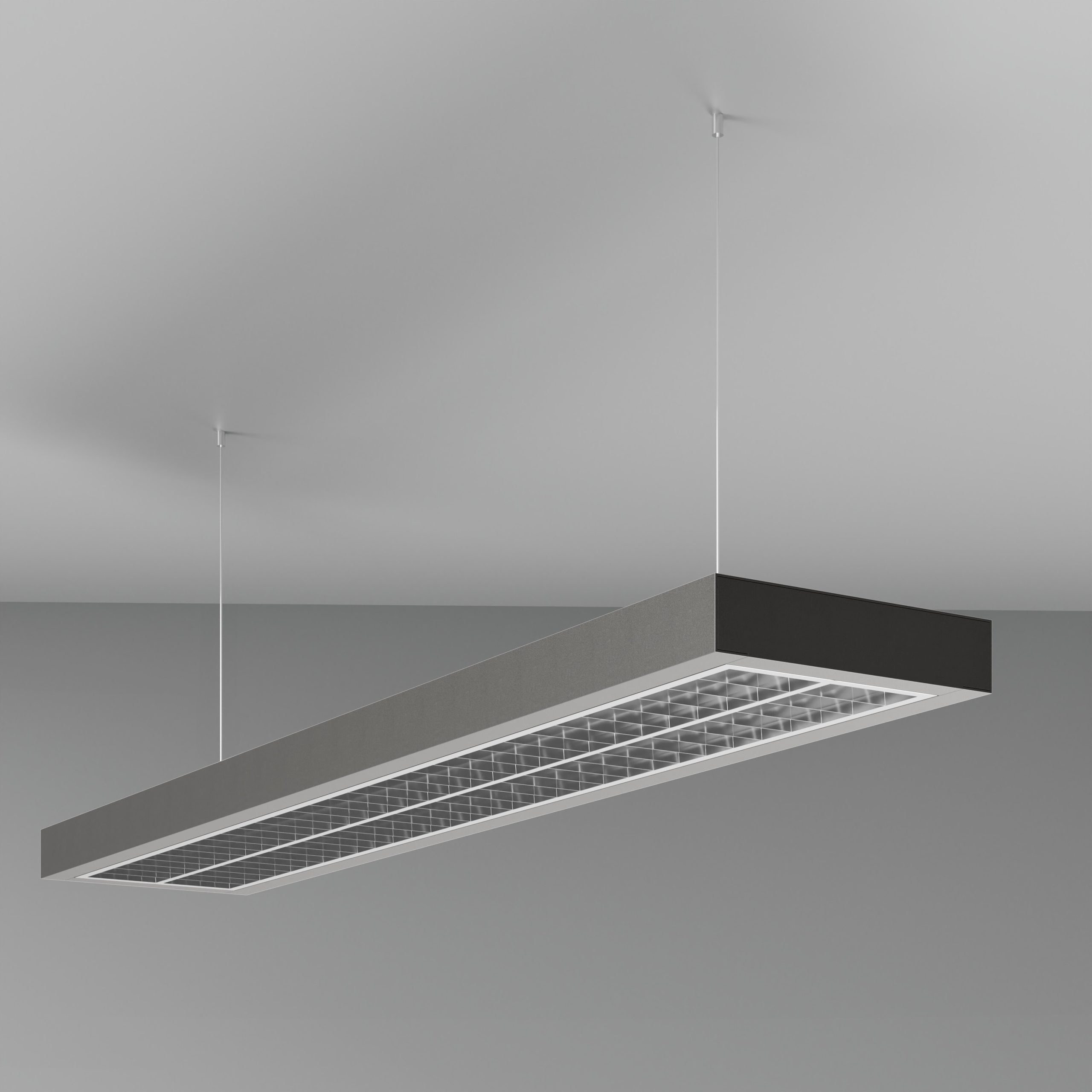

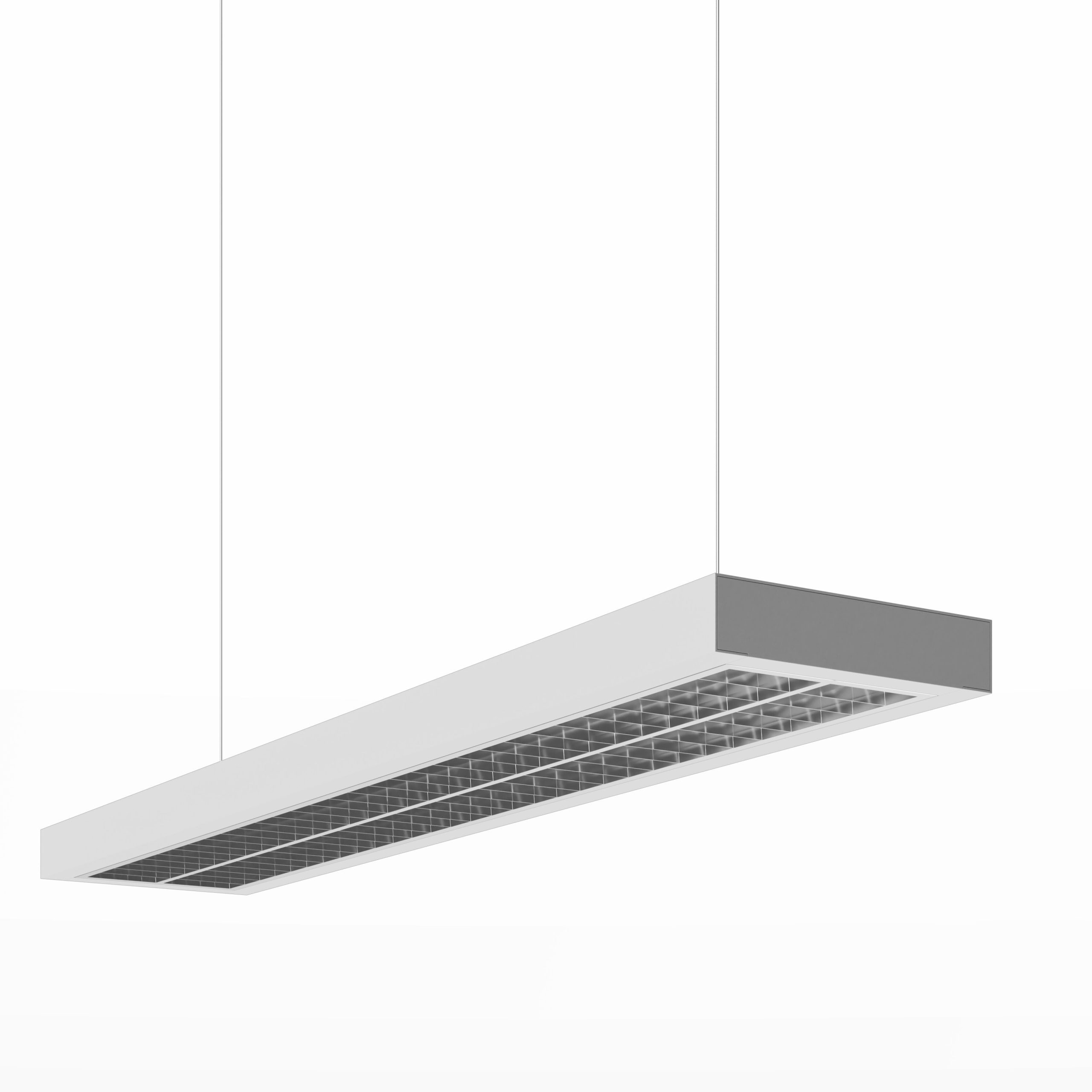

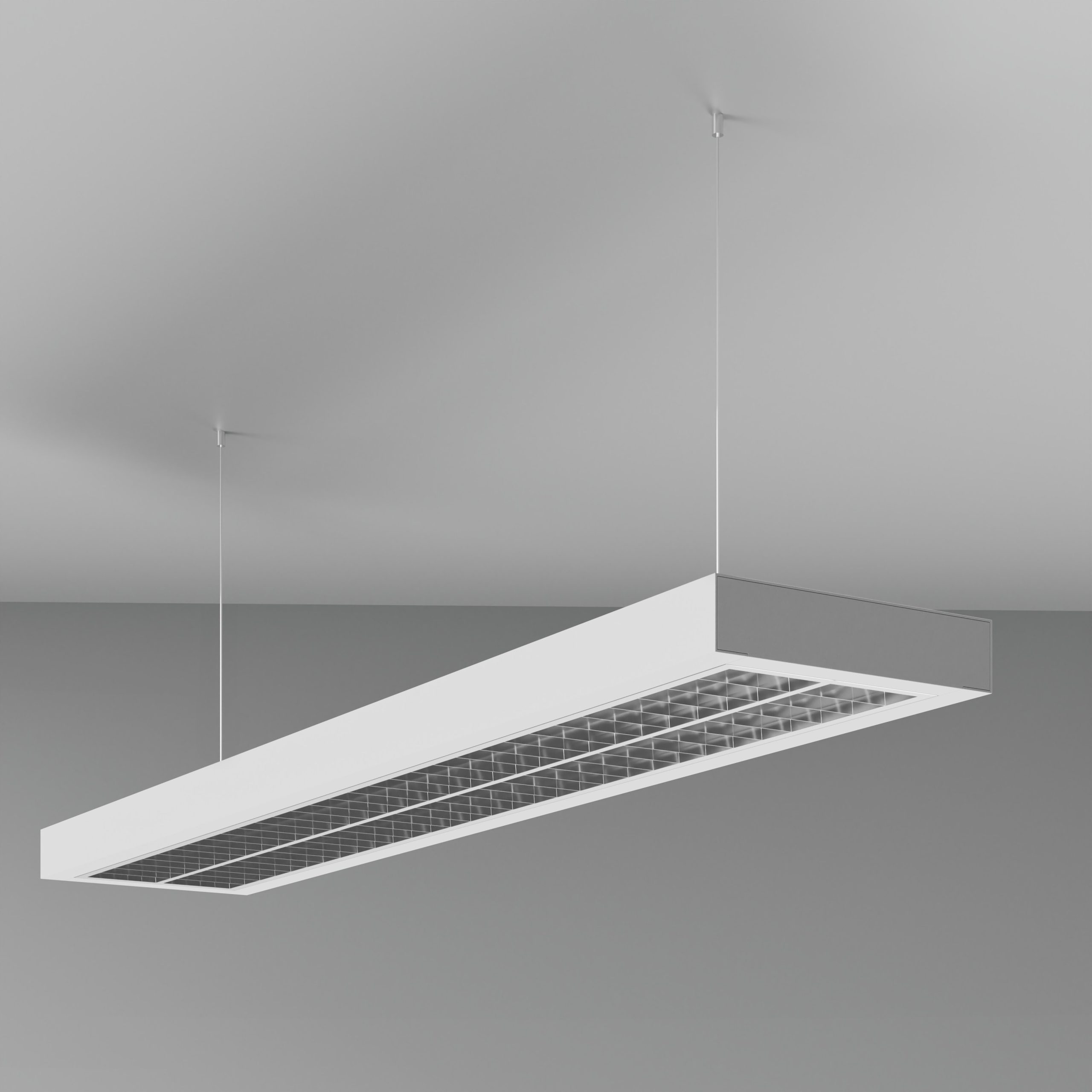

AREL DIREKT / INDIREKT

Pendlad LED armatur upp och nedljus med god avbländning. Dubbel anslutning (direkt och indirekt ljusfördelning, varje krets kan kopplas separat). Dessa LED armaturer rekommenderas för kontor och belysningsområden med höga krav på ljus- och bländskydd. CRI 80.

Montering: Pendlade (nerljus)
Byggvarubedömningen

AREL DIREKT / INDIREKT

Optik:

  • KV – dubbelparaboliskt lamellgaller, kategori C2 i högpolerat aluminium, med opak skydd för LED-moduler
  • KVM – dubbelparabolskt lamellgaller kategori C2 i matt aluminium, med opak skydd för LED-moduler

Ljusstyrning:

  • ND – ej dimbar (standard)
  • DIM – dimbar 1-10V
  • DALI – dimbar DALI (SwitchDIM)
  • On/off med inbyggd 2st dragsnöre för separat styrning av uppljus respektive nedljus
  • DALI med inbyggd 2st dragdim för separat styrning av uppljus respektive nedljus

Användning:

Pendlad LED armatur med dubbel anslutning (direkt och indirekt ljusfördelning, varje krets kan kopplas separat).
Dessa LED armaturer rekommenderas för kontor och belysningsområden med höga krav på ljus- och bländskydd.
Montageset ZHX11 ingår.

Art nr. Se artiklar >
Användningsområden

|

Material Vit/gråmålat metallhölje (RAL9003).
Färg

Grå RAL-9007| Vit RAL-9003

Optik

KV| KVM

Montering

Pendlade -nerljus

Effekt (Watt) 33W|42W| - 43W|55W|56W|58W|62W|79W
Styrning

DALI + 2st Dragdim| On/off + 2st dragsnöre| DALI| DIM (1-10V)| ND (On/Off)

Livslängd

100000h (L90B10)

Färgtemperatur (CCT) 3000K|4000K
Lumen (lm) 3800lm|4000lm| - 4600lm|5000lm|5300lm|5500lm|5800lm|6400lm|6600lm|7200lm|7400lm|7400lm|7600lm|8800lm
CRI

80+| 90+

IP-class

IP20

UGR

<19

Ljuskälla (LED) Mid Power LED
BVB ID 118819
Längd 1245mm|1545mm
Bredd 140mm|245mm
Höjd 52mm|55mm
Dimensioner N/A
Markings

döljvisa filter

Art. nr

E-nummer

Färg

Variant

Optik

Effekt

Styrning

CCT

Lumen

Längd

Bredd

Höjd

2152-370 239 40Grå RAL-9007AREL DI 50/5043WND (On/Off)3000K4600 lm1545 mm245 mm55 mm
2152-470 239 41Grå RAL-9007AREL DI 50/5043WND (On/Off)4000K4600 lm1545 mm245 mm55 mm
21527-370 239 42Grå RAL-9007AREL DI 50/5043WDALI3000K4600 lm1545 mm245 mm55 mm
21527-470 239 43Grå RAL-9007AREL DI 50/5043WDALI4000K4600 lm1545 mm245 mm55 mm
2152-03-3saknasVit RAL-9003AREL DI 50/5043WND (On/Off)3000K4600 lm1545 mm245 mm55 mm
2152-03-4saknasVit RAL-9003AREL DI 50/5043WND (On/Off)4000K4600 lm1545 mm245 mm55 mm
21527-03-3saknasVit RAL-9003AREL DI 50/5043WDALI3000K4600 lm1545 mm245 mm55 mm
21527-03-4saknasVit RAL-9003AREL DI 50/5043WDALI4000K4600 lm1545 mm245 mm55 mm
1828-370 239 19Grå RAL-9007AREL DI 60/40KV56WND (On/Off)3000K5000 lm1245 mm245 mm55 mm
1828-470 239 20Grå RAL-9007AREL DI 60/40KV56WND (On/Off)4000K5000 lm1245 mm245 mm55 mm
1828-03-3saknasVit RAL-9003AREL DI 60/40KV56WND (On/Off)3000K5000 lm1245 mm245 mm55 mm
1828-03-4saknasVit RAL-9003AREL DI 60/40KV56WND (On/Off)4000K5000 lm1245 mm245 mm55 mm
1829-370 239 21Grå RAL-9007AREL DI 60/40KV79WND (On/Off)3000K8800 lm1545 mm245 mm55 mm
1829-470 239 22Grå RAL-9007AREL DI 60/40KV79WND (On/Off)4000K8800 lm1545 mm245 mm55 mm
1829-03-3saknasVit RAL-9003AREL DI 60/40KV79WND (On/Off)3000K8800 lm1545 mm245 mm55 mm
1829-03-4saknasVit RAL-9003AREL DI 60/40KV79WND (On/Off)4000K8800 lm1545 mm245 mm55 mm
1830-370 239 23Grå RAL-9007AREL DI 60/40KVM56WND (On/Off)3000K5000 lm1245 mm245 mm55 mm
1830-470 239 24Grå RAL-9007AREL DI 60/40KVM56WND (On/Off)4000K5000 lm1245 mm245 mm55 mm
1830-03-3saknasVit RAL-9003AREL DI 60/40KVM56WND (On/Off)3000K5000 lm1245 mm245 mm55 mm
1830-03-4saknasVit RAL-9003AREL DI 60/40KVM56WND (On/Off)4000K5000 lm1245 mm245 mm55 mm
1831-370 239 25Grå RAL-9007AREL DI 60/40KVM79WND (On/Off)3000K8800 lm1545 mm245 mm55 mm
1831-470 239 24Grå RAL-9007AREL DI 60/40KVM79WND (On/Off)4000K8800 lm1545 mm245 mm55 mm
1831-03-3saknasVit RAL-9003AREL DI 60/40KVM79WND (On/Off)3000K8800 lm1545 mm245 mm55 mm
1831-03-4saknasVit RAL-9003AREL DI 60/40KVM79WND (On/Off)4000K8800 lm1545 mm245 mm55 mm
18287-370 239 29Grå RAL-9007AREL DI 60/40KV56WDALI3000K5000 lm1245 mm245 mm55 mm
18287-470 239 30Grå RAL-9007AREL DI 60/40KV56WDALI4000K5000 lm1245 mm245 mm55 mm
18287-03-3saknasVit RAL-9003AREL DI 60/40KV56WDALI3000K5000 lm1245 mm245 mm55 mm
18287-03-4saknasVit RAL-9003AREL DI 60/40KV56WDALI4000K5000 lm1245 mm245 mm55 mm
18297-370 239 31Grå RAL-9007AREL DI 60/40KV79WDALI3000K8800 lm1545 mm245 mm55 mm
18297-470 239 32Grå RAL-9007AREL DI 60/40KV79WDALI4000K8800 lm1545 mm245 mm55 mm
18297-03-3saknasVit RAL-9003AREL DI 60/40KV79WDALI3000K8800 lm1545 mm245 mm55 mm
18297-03-4saknasVit RAL-9003AREL DI 60/40KV79WDALI4000K8800 lm1545 mm245 mm55 mm
18307-370 239 33Grå RAL-9007AREL DI 60/40KVM56WDALI3000K5000 lm1245 mm245 mm55 mm
18307-470 239 30Grå RAL-9007AREL DI 60/40KVM56WDALI4000K5000 lm1245 mm245 mm55 mm
18307-03-3saknasVit RAL-9003AREL DI 60/40KVM56WDALI3000K5000 lm1245 mm245 mm55 mm
18307-03-4saknasVit RAL-9003AREL DI 60/40KVM56WDALI4000K5000 lm1245 mm245 mm55 mm
18317-370 239 37Grå RAL-9007AREL DI 60/40KVM79WDALI3000K8800 lm1545 mm245 mm55 mm
18317-470 239 39Grå RAL-9007AREL DI 60/40KVM79WDALI4000K8800 lm1545 mm245 mm55 mm
18317-03-3saknasVit RAL-9003AREL DI 60/40KVM79WDALI3000K8800 lm1545 mm245 mm55 mm
18317-03-4saknasVit RAL-9003AREL DI 60/40KVM79WDALI4000K8800 lm1545 mm245 mm55 mm
18280-370 239 44Grå RAL-9007AREL DI 60/40KV56WOn/off + 2st dragsnöre3000K5800 lm1245 mm245 mm55 mm
18280-470 239 45Grå RAL-9007AREL DI 60/40KV56WOn/off + 2st dragsnöre4000K5800 lm1245 mm245 mm55 mm
182870-370 239 46Grå RAL-9007AREL DI 60/40KV56WDALI + 2st Dragdim3000K5800 lm1245 mm245 mm55 mm
182870-470 239 47Grå RAL-9007AREL DI 60/40KV56WDALI + 2st Dragdim4000K5800 lm1245 mm245 mm55 mm
18280-03-3saknasVit RAL-9003AREL DI 60/40KV56WOn/off + 2st dragsnöre3000K5800 lm1245 mm245 mm55 mm
18280-03-4saknasVit RAL-9003AREL DI 60/40KV56WOn/off + 2st dragsnöre4000K5800 lm1245 mm245 mm55 mm
182870-03-3saknasVit RAL-9003AREL DI 60/40KV56WDALI + 2st Dragdim3000K5800 lm1245 mm245 mm55 mm
182870-03-4saknasVit RAL-9003AREL DI 60/40KV56WDALI + 2st Dragdim4000K5800 lm1245 mm245 mm55 mm
1832-1-07-3saknasGrå RAL-9007AREL X DIKV33WND (On/Off)3000K4000 lm1245 mm140 mm52 mm
1832-1-07-4saknasGrå RAL-9007AREL X DIKV33WND (On/Off)4000K4000 lm1245 mm140 mm52 mm
18327-1-07-3saknasGrå RAL-9007AREL X DIKV33WDALI3000K4000 lm1245 mm140 mm52 mm
18327-1-07-4saknasGrå RAL-9007AREL X DIKV33WDALI4000K4000 lm1245 mm140 mm52 mm
1832-1-03-3saknasVit RAL-9003AREL X DIKV33WND (On/Off)3000K4000 lm1245 mm140 mm52 mm
1832-1-03-4saknasVit RAL-9003AREL X DIKV33WND (On/Off)4000K4000 lm1245 mm140 mm52 mm
18327-1-03-3saknasVit RAL-9003AREL X DIKV33WDALI3000K4000 lm1245 mm140 mm52 mm
18327-1-03-4saknasVit RAL-9003AREL X DIKV33WDALI4000K4000 lm1245 mm140 mm52 mm
1832-2-07-3saknasGrå RAL-9007AREL X DIKVM33WND (On/Off)3000K3800 lm1245 mm140 mm52 mm
1832-2-07-4saknasGrå RAL-9007AREL X DIKVM33WND (On/Off)4000K3800 lm1245 mm140 mm52 mm
18327-2-07-4saknasGrå RAL-9007AREL X DIKVM33WDALI4000K3800 lm1245 mm140 mm52 mm
18327-2-07-3saknasGrå RAL-9007AREL X DIKVM33WDALI3000K3800 lm1245 mm140 mm52 mm
1832-2-03-3saknasVit RAL-9003AREL X DIKVM33WND (On/Off)3000K3800 lm1245 mm140 mm52 mm
1832-2-03-4saknasVit RAL-9003AREL X DIKVM33WND (On/Off)4000K3800 lm1245 mm140 mm52 mm
18327-2-03-3saknasVit RAL-9003AREL X DIKVM33WDALI3000K3800 lm1245 mm140 mm52 mm
18327-2-03-4saknasVit RAL-9003AREL X DIKVM33WDALI4000K3800 lm1245 mm140 mm52 mm
1833-1-07-3saknasGrå RAL-9007AREL X DIKV55WND (On/Off)3000K6600 lm1245 mm140 mm52 mm
1833-1-07-4saknasGrå RAL-9007AREL X DIKV55WND (On/Off)4000K6600 lm1245 mm140 mm52 mm
18337-1-07-3saknasGrå RAL-9007AREL X DIKV55WDALI3000K6600 lm1245 mm140 mm52 mm
18337-1-07-4saknasGrå RAL-9007AREL X DIKV55WDALI4000K6600 lm1245 mm140 mm52 mm
1833-1-03-3saknasVit RAL-9003AREL X DIKV55WND (On/Off)3000K6600 lm1245 mm140 mm52 mm
1833-1-03-4saknasVit RAL-9003AREL X DIKV55WND (On/Off)4000K6600 lm1245 mm140 mm52 mm
18337-1-03-3saknasVit RAL-9003AREL X DIKV55WDALI3000K6600 lm1245 mm140 mm52 mm
18337-1-03-4saknasVit RAL-9003AREL X DIKV55WDALI4000K6600 lm1245 mm140 mm52 mm
1833-2-07-3saknasGrå RAL-9007AREL X DIKVM55WND (On/Off)3000K6400 lm1245 mm140 mm52 mm
1833-2-07-4saknasGrå RAL-9007AREL X DIKVM55WND (On/Off)4000K6400 lm1245 mm140 mm52 mm
18337-2-07-3saknasGrå RAL-9007AREL X DIKVM55WDALI3000K6400 lm1245 mm140 mm52 mm
18337-2-07-4saknasGrå RAL-9007AREL X DIKVM55WDALI4000K6400 lm1245 mm140 mm52 mm
1833-2-03-3saknasVit RAL-9003AREL X DIKVM55WND (On/Off)3000K6400 lm1245 mm140 mm52 mm
1833-2-03-4saknasVit RAL-9003AREL X DIKVM55WND (On/Off)4000K6400 lm1245 mm140 mm52 mm
18337-2-03-3saknasVit RAL-9003AREL X DIKVM55WDALI3000K6400 lm1245 mm140 mm52 mm
18337-2-03-4saknasVit RAL-9003AREL X DIKVM55WDALI4000K6400 lm1245 mm140 mm52 mm
1834-1-07-3saknasGrå RAL-9007AREL X DIKV62WND (On/Off)3000K7400 lm1245 mm140 mm52 mm
1834-1-07-4saknasGrå RAL-9007AREL X DIKV62WND (On/Off)4000K7400 lm1245 mm140 mm52 mm
18347-1-07-3saknasGrå RAL-9007AREL X DIKV62WDALI3000K7400 lm1245 mm140 mm52 mm
18347-1-07-4saknasGrå RAL-9007AREL X DIKV62WDALI4000K7400 lm1245 mm140 mm52 mm
1834-1-03-3saknasVit RAL-9003AREL X DIKV62WND (On/Off)3000K7400 lm1245 mm140 mm52 mm
1834-1-03-4saknasVit RAL-9003AREL X DIKV62WND (On/Off)4000K7400 lm1245 mm140 mm52 mm
18347-1-03-3saknasVit RAL-9003AREL X DIKV62WDALI3000K7400 lm1245 mm140 mm52 mm
18347-1-03-4saknasVit RAL-9003AREL X DIKV62WDALI4000K7400 lm1245 mm140 mm52 mm
1834-2-07-3saknasGrå RAL-9007AREL X DIKVM62WND (On/Off)3000K7200 lm1245 mm140 mm52 mm
1834-2-07-4saknasGrå RAL-9007AREL X DIKVM62WND (On/Off)4000K7200 lm1245 mm140 mm52 mm
18347-2-07-3saknasGrå RAL-9007AREL X DIKVM62WDALI3000K7200 lm1245 mm140 mm52 mm
18347-2-07-4saknasGrå RAL-9007AREL X DIKVM62WDALI4000K7200 lm1245 mm140 mm52 mm
1834-2-03-3saknasVit RAL-9003AREL X DIKVM62WND (On/Off)3000K7200 lm1245 mm140 mm52 mm
1834-2-03-4saknasVit RAL-9003AREL X DIKVM62WND (On/Off)4000K7200 lm1245 mm140 mm52 mm
18347-2-03-3saknasVit RAL-9003AREL X DIKVM62WDALI3000K7200 lm1245 mm140 mm52 mm
18347-2-03-4saknasVit RAL-9003AREL X DIKVM62WDALI4000K7200 lm1245 mm140 mm52 mm
1835-1-07-3saknasGrå RAL-9007AREL X DIKV42WND (On/Off)3000K5500 lm1545 mm140 mm52 mm
1835-1-07-4saknasGrå RAL-9007AREL X DIKV42WND (On/Off)4000K5500 lm1545 mm140 mm52 mm
18357-1-07-saknasGrå RAL-9007AREL X DIKV42WDALI3000K5500 lm1545 mm140 mm52 mm
18357-1-07-4saknasGrå RAL-9007AREL X DIKV42WDALI4000K5500 lm1545 mm140 mm52 mm
1835-1-03-3saknasVit RAL-9003AREL X DIKV42WND (On/Off)3000K5500 lm1545 mm140 mm52 mm
1835-1-03-4saknasVit RAL-9003AREL X DIKV42WND (On/Off)4000K5500 lm1545 mm140 mm52 mm
18357-1-03-3saknasVit RAL-9003AREL X DIKV42WDALI3000K5500 lm1545 mm140 mm52 mm
18357-1-03-4saknasVit RAL-9003AREL X DIKV42WDALI4000K5500 lm1545 mm140 mm52 mm
1835-2-07-3saknasGrå RAL-9007AREL X DIKVM42WND (On/Off)3000K5300 lm1545 mm140 mm52 mm
1835-2-07-4saknasGrå RAL-9007AREL X DIKVM42WND (On/Off)4000K5300 lm1545 mm140 mm52 mm
18357-2-07-3saknasGrå RAL-9007AREL X DIKVM42WDALI3000K5300 lm1545 mm140 mm52 mm
18357-2-07-4saknasGrå RAL-9007AREL X DIKVM42WDALI4000K5300 lm1545 mm140 mm52 mm
1835-2-03-3saknasVit RAL-9003AREL X DIKVM42WND (On/Off)3000K5300 lm1545 mm140 mm52 mm
1835-2-03-4saknasVit RAL-9003AREL X DIKVM42WND (On/Off)4000K5300 lm1545 mm140 mm52 mm
18357-2-03-3saknasVit RAL-9003AREL X DIKVM42WDALI3000K5300 lm1545 mm140 mm52 mm
18357-2-03-4saknasVit RAL-9003AREL X DIKVM42WDALI4000K5300 lm1545 mm140 mm52 mm
1836-1-07-3saknasGrå RAL-9007AREL X DIKV58WND (On/Off)3000K7600 lm1545 mm140 mm52 mm
1836-1-07-4saknasGrå RAL-9007AREL X DIKV58WND (On/Off)4000K7600 lm1545 mm140 mm52 mm
18367-1-07-3saknasGrå RAL-9007AREL X DIKV58WDALI3000K7600 lm1545 mm140 mm52 mm
18367-1-07-4saknasGrå RAL-9007AREL X DIKV58WDALI4000K7600 lm1545 mm140 mm52 mm
1836-1-03-3saknasVit RAL-9003AREL X DIKV58WND (On/Off)3000K7600 lm1545 mm140 mm52 mm
1836-1-03-4saknasVit RAL-9003AREL X DIKV58WND (On/Off)4000K7600 lm1545 mm140 mm52 mm
18367-1-03-3saknasVit RAL-9003AREL X DIKV58WDALI3000K7600 lm1545 mm140 mm52 mm
18367-1-03-4saknasVit RAL-9003AREL X DIKV58WDALI4000K7600 lm1545 mm140 mm52 mm
1836-2-07-3saknasGrå RAL-9007AREL X DIKVM58WND (On/Off)3000K7400 lm1545 mm140 mm52 mm
1836-2-07-4saknasGrå RAL-9007AREL X DIKVM58WND (On/Off)4000K7400 lm1545 mm140 mm52 mm
18367-2-07-3saknasGrå RAL-9007AREL X DIKVM58WDALI3000K7400 lm1545 mm140 mm52 mm
18367-2-07-4saknasGrå RAL-9007AREL X DIKVM58WDALI4000K7400 lm1545 mm140 mm52 mm
1836-2-03-3saknasVit RAL-9003AREL X DIKVM58WND (On/Off)3000K7400 lm1545 mm140 mm52 mm
1836-2-03-4saknasVit RAL-9003AREL X DIKVM58WND (On/Off)4000K7400 lm1545 mm140 mm52 mm
18367-2-03-3saknasVit RAL-9003AREL X DIKVM58WDALI3000K7400 lm1545 mm140 mm52 mm
18367-2-03-4saknasVit RAL-9003AREL X DIKVM58WDALI4000K7400 lm1545 mm140 mm52 mm
