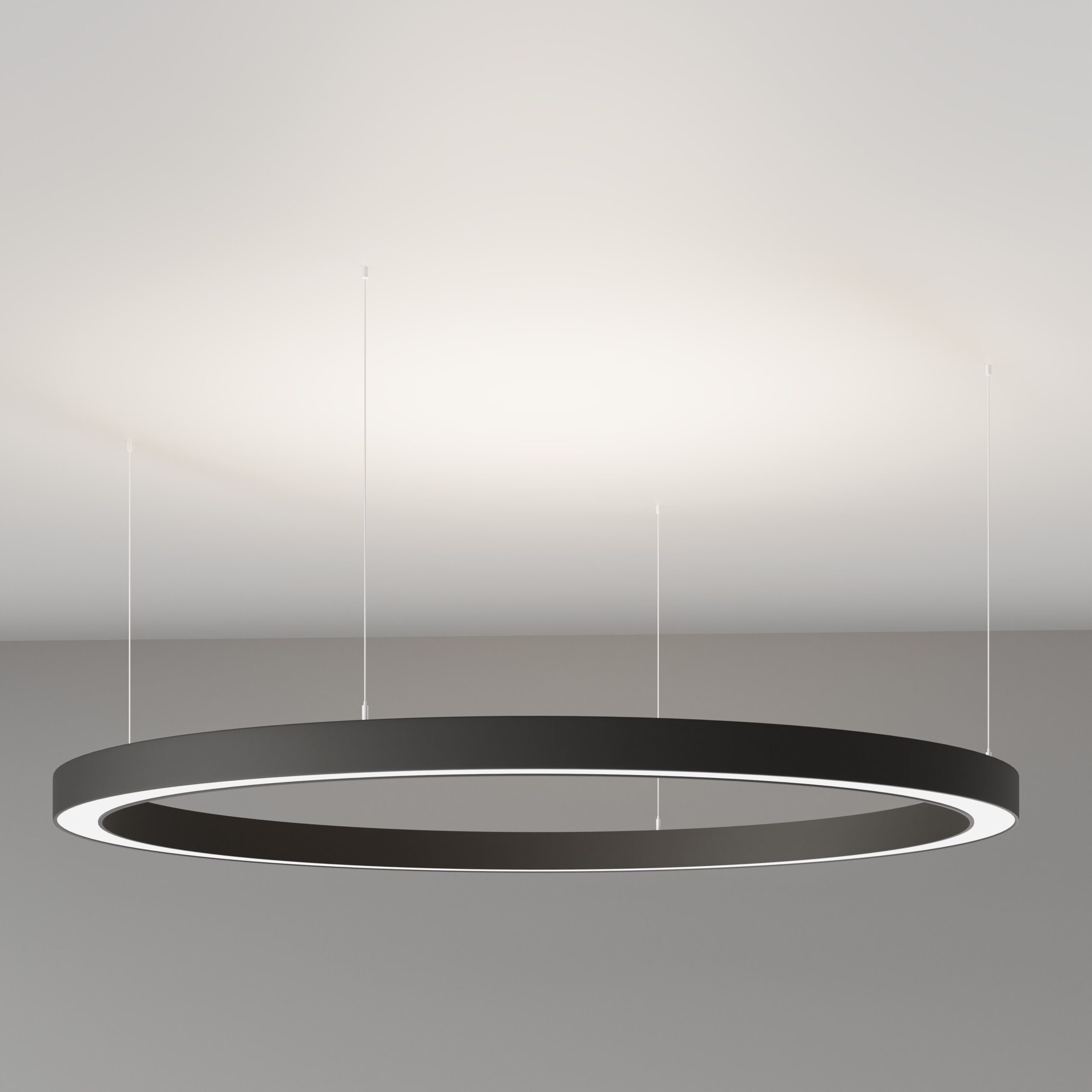

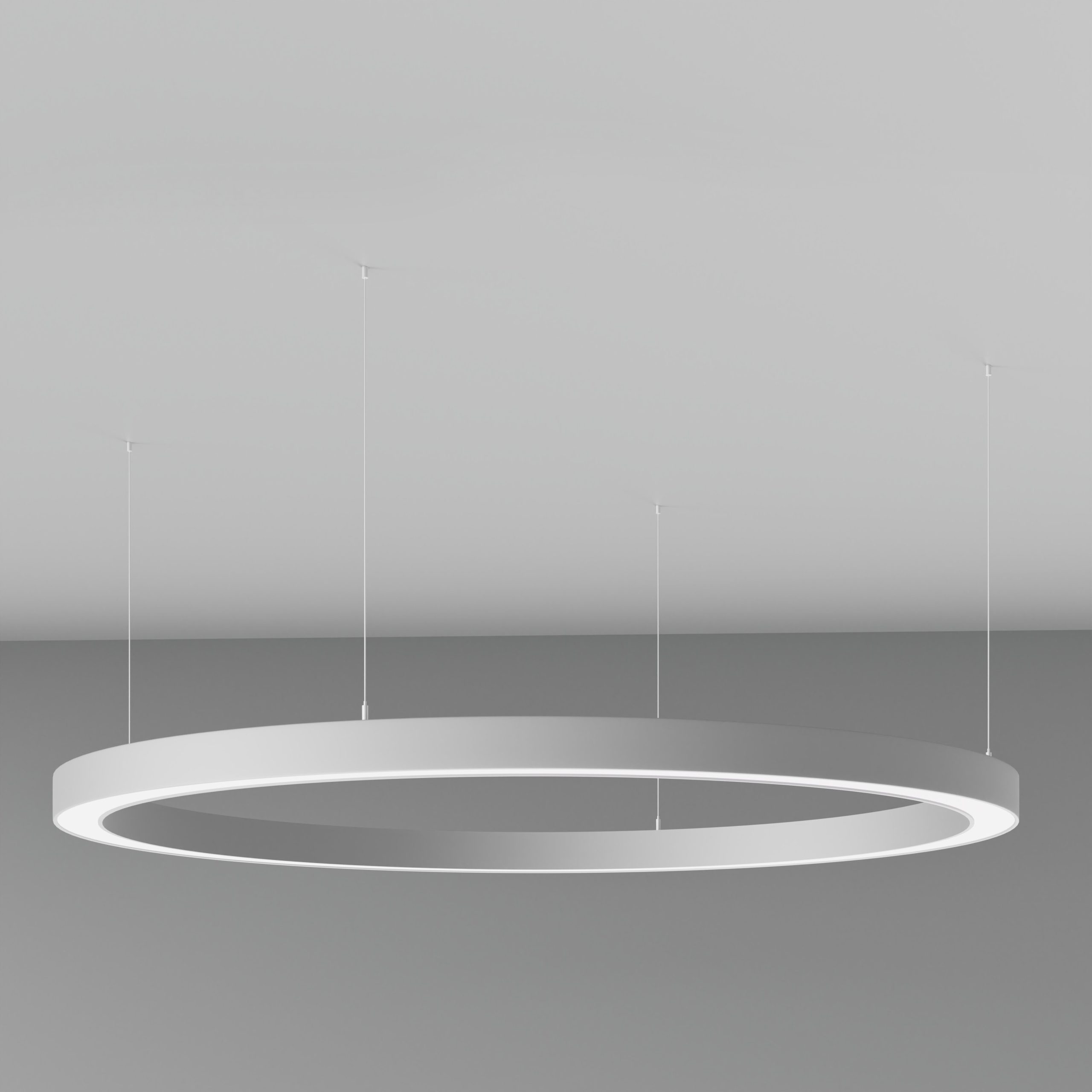

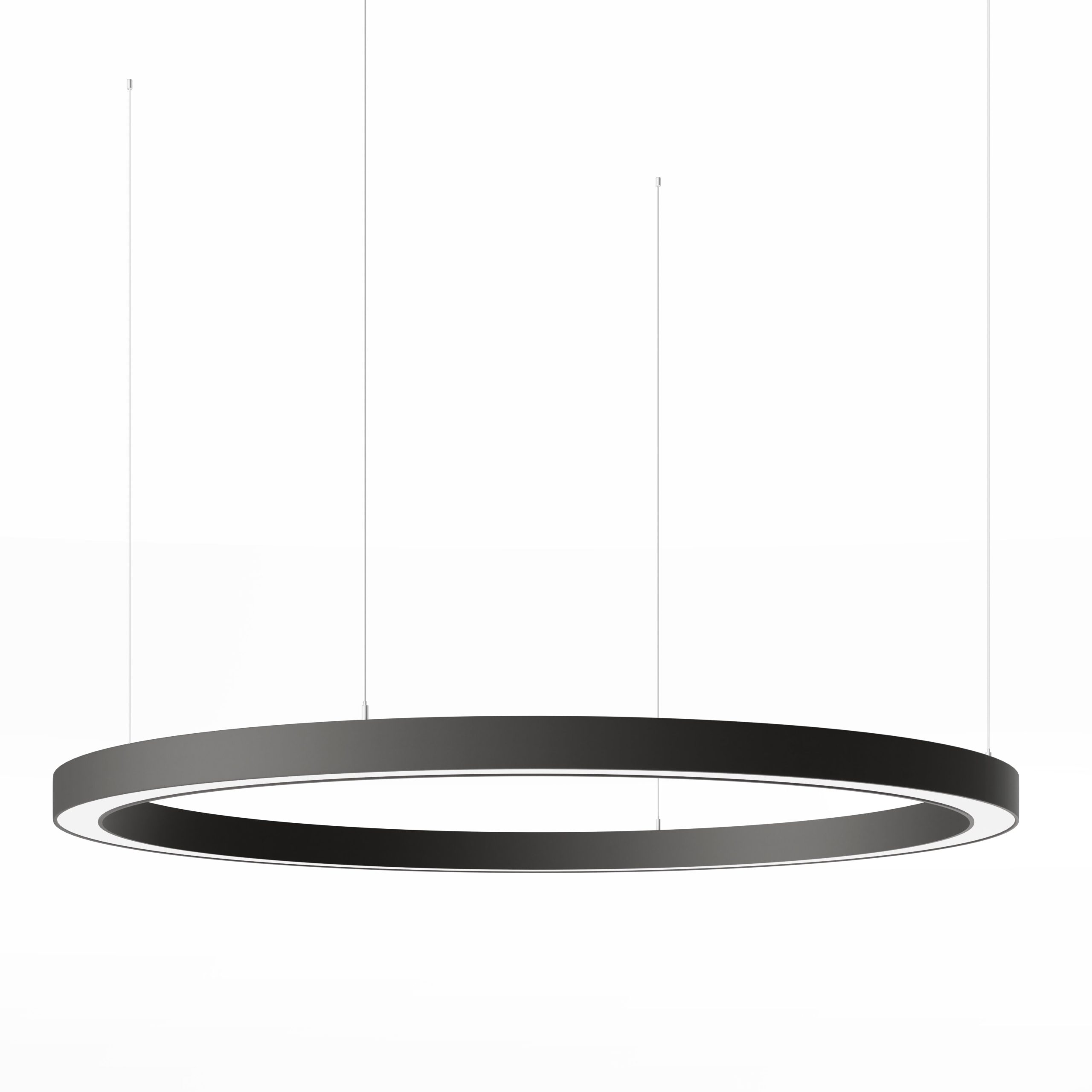

O LED DIREKT / INDIREKT
Tillverkad av 1 mm stål och nickelpatinerade komponenter. Justerbar längd. Levereras med transparent elkabel och montagebox med estetisk design.
O LED DIREKT / INDIREKT
ARMATURHÖLJE
- Anodiserad aluminium med satin ytskikt. Svart eller vit.
BLÄNDSKYDD
- UV beständig akryl.
DRIVDON
- Effektiv och högkvalitativt drivdon med lågt spännnigsfall för konstantström. Komplatibel med ENEC standardL.
JUSKÄLLA
- LED moduler med 50,000h livslängd LUMILEDS / OSRAM.
| Art nr. | Se artiklar > |
|---|---|
| Användningsområden | | | | |
| E-nummer |
7022047 |7022048 |7022049 |7022051 |7022053 |7022055 |7022057 |7022058 |7022059 |7022061 |7022063 |7022065 |7022069 |7022070 |7022071 |7022072 |7022073 |7022077 |7022079 |7022081 |7022083 |7022085 |7022087 |7022088 |7022089 |7022090 |7022091 |7022092 |7022093 |7022094 |7022095 |7022096 |7022097 |7022098 |7022099 |7022100 |7022106 |7022107 |7022108 |7022109 |7022111 |7022113 |7022115 |7022117 |7022119 |7022121 |7022123 |7022125 |7022126 |7022127 |7022128 |7022129 |7022130 |7022136 |7022137 |7022138 |
| Färg |
Vit |Svart |
| Montering |
Pendlad upp och nerljus |
| Styrning |
DALI |ND (On/Off) |
| Livslängd |
50000h (L80B50) |
| Färgtemperatur (CCT) | 2700K | 3000K | - 4000K | 5000K |
| CRI |
80+ |90+ |
| Watt Direct/Indirect |
39/18 |53/21 |66/28 |79/35 |92/39 |105/46 |132/57 |
| Lm (Direct/Indirect) |
3880 / 1405 |5170 / 1685 |6460 / 2250 |7755 / 2810 |9045 / 3090 |10340 / 3650 |13300 / 4495 |
| BVB ID | 148176 |
| Diameter (mm) | 620mm | 800mm | - 980mm | 1155mm | 1335mm | 1500mm | 1890mm |
| Bredd | 79mm |
| Höjd | 73mm |
| Dimensioner | N/A |
| Markings | | |
| Vikt | 3.9kg|5.1kg| - 6.5kg|7.7kg|8.9kg|10.1kg|11.3kg |
Avsäkringstabell
| Type | B10A | B16A | B20A | B25A | C10A | C16A | C20A | C25A |
|---|---|---|---|---|---|---|---|---|
| 90238x (39/18W ON-OFF) | 6 | 11 | 14 | 11 | 18 | 24 | ||
| 90239x (53/21W ON-OFF) | 4 | 7 | 9 | 6 | 11 | 16 | ||
| 90240x (66/28W ON-OFF) | 4 | 7 | 9 | 6 | 11 | 16 | ||
| 90241x (79/35W ON-OFF) | 4 | 7 | 9 | 7 | 12 | 16 | ||
| 90242x (92/39W ON-OFF) | 4 | 7 | 9 | 7 | 12 | 16 | ||
| 90243x (105/46W ON-OFF) | 2 | 4 | 6 | 4 | 7 | 10 | ||
| 90244x (132/57W ON-OFF) | 2 | 4 | 6 | 4 | 7 | 10 | ||
| 90238x (39/18W DALI) | 6 | 11 | 13 | 10 | 18 | 22 | ||
| 90239x (53/21W DALI) | 6 | 10 | 13 | 10 | 17 | 22 | ||
| 90240x (66/28W DALI) | 6 | 10 | 13 | 10 | 17 | 22 | ||
| 90241x (79/35W DALI) | 4 | 7 | 9 | 7 | 12 | 15 | ||
| 90242x (92/39W DALI) | 4 | 7 | 9 | 7 | 12 | 15 | ||
| 90243x (105/46W DALI) | 4 | 7 | 9 | 7 | 11 | 15 | ||
| 90244x (132/57W DALI) | 4 | 7 | 9 | 7 | 11 | 15 |
Art. nr | E-nummer | Färg | Styrning | CCT | Watt Direct/Indirect | Lm (Direct/Indirect) | Diameter | Vikt |
|---|---|---|---|---|---|---|---|---|
| 902385-3 | 70 220 47 | Svart | ND (On/Off) | 3000K | 39/18 | 3880 / 1405 | 620 mm | 3.9 kg |
| 902385-4 | 70 220 48 | Svart | ND (On/Off) | 4000K | 39/18 | 3880 / 1405 | 620 mm | 3.9 kg |
| 9023857-3 | 70 220 49 | Svart | DALI | 3000K | 39/18 | 3880 / 1405 | 620 mm | 3.9 kg |
| 9023857-4 | 70 220 51 | Svart | DALI | 4000K | 39/18 | 3880 / 1405 | 620 mm | 3.9 kg |
| 902395-3 | 70 220 53 | Svart | ND (On/Off) | 3000K | 53/21 | 5170 / 1685 | 800 mm | 5.1 kg |
| 902395-4 | 70 220 55 | Svart | ND (On/Off) | 4000K | 53/21 | 5170 / 1685 | 800 mm | 5.1 kg |
| 9023957-3 | 70 220 57 | Svart | DALI | 3000K | 53/21 | 5170 / 1685 | 800 mm | 5.1 kg |
| 9023957-4 | 70 220 58 | Svart | DALI | 4000K | 53/21 | 5170 / 1685 | 800 mm | 5.1 kg |
| 902405-3 | 70 220 59 | Svart | ND (On/Off) | 3000K | 66/28 | 6460 / 2250 | 980 mm | 6.5 kg |
| 902405-4 | 70 220 61 | Svart | ND (On/Off) | 4000K | 66/28 | 6460 / 2250 | 980 mm | 6.5 kg |
| 9024057-3 | 70 220 63 | Svart | DALI | 3000K | 66/28 | 6460 / 2250 | 980 mm | 6.5 kg |
| 9024057-4 | 70 220 65 | Svart | DALI | 4000K | 66/28 | 6460 / 2250 | 980 mm | 6.5 kg |
| 902415-3 | 70 220 69 | Svart | ND (On/Off) | 3000K | 79/35 | 7755 / 2810 | 1155 mm | 7.7 kg |
| 902415-4 | 70 220 70 | Svart | ND (On/Off) | 4000K | 79/35 | 7755 / 2810 | 1155 mm | 7.7 kg |
| 9024157-3 | 70 220 71 | Svart | DALI | 3000K | 79/35 | 7755 / 2810 | 1155 mm | 7.7 kg |
| 9024157-4 | 70 220 72 | Svart | DALI | 4000K | 79/35 | 7755 / 2810 | 1155 mm | 7.7 kg |
| 902425-3 | 70 220 73 | Svart | ND (On/Off) | 3000K | 92/39 | 9045 / 3090 | 1335 mm | 8.9 kg |
| 902425-4 | 70 220 77 | Svart | ND (On/Off) | 4000K | 92/39 | 9045 / 3090 | 1335 mm | 8.9 kg |
| 9024257-3 | 70 220 79 | Svart | DALI | 3000K | 92/39 | 9045 / 3090 | 1335 mm | 8.9 kg |
| 9024257-4 | 70 220 81 | Svart | DALI | 4000K | 92/39 | 9045 / 3090 | 1335 mm | 8.9 kg |
| 902435-3 | 70 220 83 | Svart | ND (On/Off) | 3000K | 105/46 | 10340 / 3650 | 1500 mm | 10.1 kg |
| 902435-4 | 70 220 85 | Svart | ND (On/Off) | 4000K | 105/46 | 10340 / 3650 | 1500 mm | 10.1 kg |
| 9024357-3 | 70 220 87 | Svart | DALI | 3000K | 105/46 | 10340 / 3650 | 1500 mm | 10.1 kg |
| 9024357-4 | 70 220 88 | Svart | DALI | 4000K | 105/46 | 10340 / 3650 | 1500 mm | 10.1 kg |
| 902445-3 | 70 220 89 | Svart | ND (On/Off) | 3000K | 132/57 | 13300 / 4495 | 1890 mm | 11.3 kg |
| 902445-4 | 70 220 90 | Svart | ND (On/Off) | 4000K | 132/57 | 13300 / 4495 | 1890 mm | 11.3 kg |
| 9024457-3 | 70 220 91 | Svart | DALI | 3000K | 132/57 | 13300 / 4495 | 1890 mm | 11.3 kg |
| 9024457-4 | 70 220 92 | Svart | DALI | 4000K | 132/57 | 13300 / 4495 | 1890 mm | 11.3 kg |
| 902383-3 | 70 220 93 | Vit | ND (On/Off) | 3000K | 39/18 | 3880 / 1405 | 620 mm | 3.9 kg |
| 902383-4 | 70 220 94 | Vit | ND (On/Off) | 4000K | 39/18 | 3880 / 1405 | 620 mm | 3.9 kg |
| 9023837-3 | 70 220 95 | Vit | DALI | 3000K | 39/18 | 3880 / 1405 | 620 mm | 3.9 kg |
| 9023837-4 | 70 220 96 | Vit | DALI | 4000K | 39/18 | 3880 / 1405 | 620 mm | 3.9 kg |
| 902393-3 | 70 220 97 | Vit | ND (On/Off) | 3000K | 53/21 | 5170 / 1685 | 800 mm | 5.1 kg |
| 902393-4 | 70 220 98 | Vit | ND (On/Off) | 4000K | 53/21 | 5170 / 1685 | 800 mm | 5.1 kg |
| 9023937-3 | 70 220 99 | Vit | DALI | 3000K | 53/21 | 5170 / 1685 | 800 mm | 5.1 kg |
| 9023937-4 | 70 221 00 | Vit | DALI | 4000K | 53/21 | 5170 / 1685 | 800 mm | 5.1 kg |
| 902403-3 | 70 221 06 | Vit | ND (On/Off) | 3000K | 66/28 | 6460 / 2250 | 980 mm | 6.5 kg |
| 902403-4 | 70 221 07 | Vit | ND (On/Off) | 4000K | 66/28 | 6460 / 2250 | 980 mm | 6.5 kg |
| 9024037-3 | 70 221 08 | Vit | DALI | 3000K | 66/28 | 6460 / 2250 | 980 mm | 6.5 kg |
| 9024037-4 | 70 221 09 | Vit | DALI | 4000K | 66/28 | 6460 / 2250 | 980 mm | 6.5 kg |
| 902413-3 | 70 221 11 | Vit | ND (On/Off) | 3000K | 79/35 | 7755 / 2810 | 1155 mm | 7.7 kg |
| 902413-4 | 70 221 13 | Vit | ND (On/Off) | 4000K | 79/35 | 7755 / 2810 | 1155 mm | 7.7 kg |
| 9024137-3 | 70 221 15 | Vit | DALI | 3000K | 79/35 | 7755 / 2810 | 1155 mm | 7.7 kg |
| 9024137-4 | 70 221 17 | Vit | DALI | 4000K | 79/35 | 7755 / 2810 | 1155 mm | 7.7 kg |
| 902423-3 | 70 221 19 | Vit | ND (On/Off) | 3000K | 92/39 | 9045 / 3090 | 1335 mm | 8.9 kg |
| 902423-4 | 70 221 21 | Vit | ND (On/Off) | 4000K | 92/39 | 9045 / 3090 | 1335 mm | 8.9 kg |
| 9024237-3 | 70 221 23 | Vit | DALI | 3000K | 92/39 | 9045 / 3090 | 1335 mm | 8.9 kg |
| 9024237-4 | 70 221 25 | Vit | DALI | 4000K | 92/39 | 9045 / 3090 | 1335 mm | 8.9 kg |
| 902433-3 | 70 221 26 | Vit | ND (On/Off) | 3000K | 105/46 | 10340 / 3650 | 1500 mm | 10.1 kg |
| 902433-4 | 70 221 27 | Vit | ND (On/Off) | 4000K | 105/46 | 10340 / 3650 | 1500 mm | 10.1 kg |
| 9024337-3 | 70 221 28 | Vit | DALI | 3000K | 105/46 | 10340 / 3650 | 1500 mm | 10.1 kg |
| 9024337-4 | 70 221 29 | Vit | DALI | 4000K | 105/46 | 10340 / 3650 | 1500 mm | 10.1 kg |
| 902443-3 | 70 221 30 | Vit | ND (On/Off) | 3000K | 132/57 | 13300 / 4495 | 1890 mm | 11.3 kg |
| 902443-4 | 70 221 36 | Vit | ND (On/Off) | 4000K | 132/57 | 13300 / 4495 | 1890 mm | 11.3 kg |
| 9024437-3 | 70 221 37 | Vit | DALI | 3000K | 132/57 | 13300 / 4495 | 1890 mm | 11.3 kg |
| 9024437-4 | 70 221 38 | Vit | DALI | 4000K | 132/57 | 13300 / 4495 | 1890 mm | 11.3 kg |
