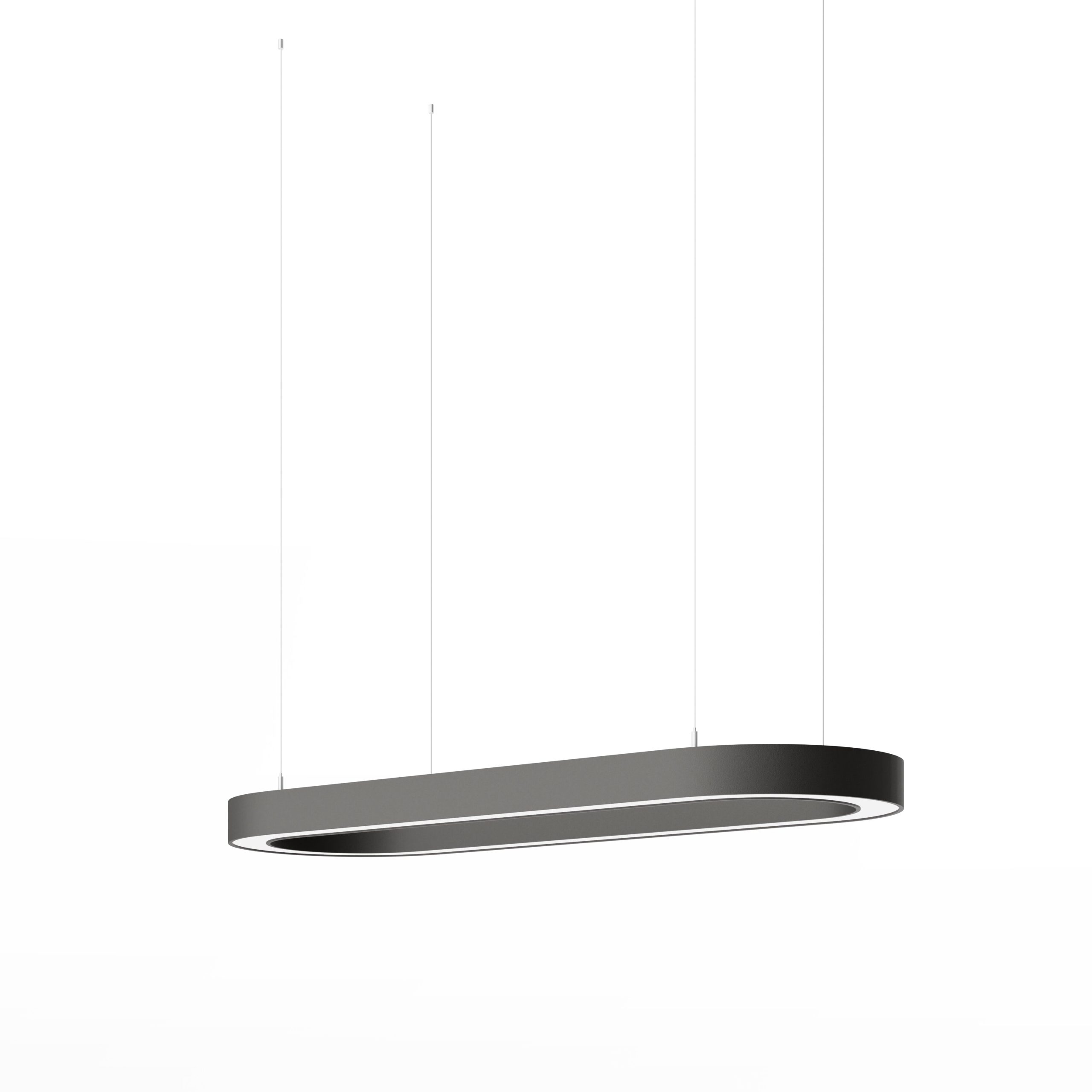

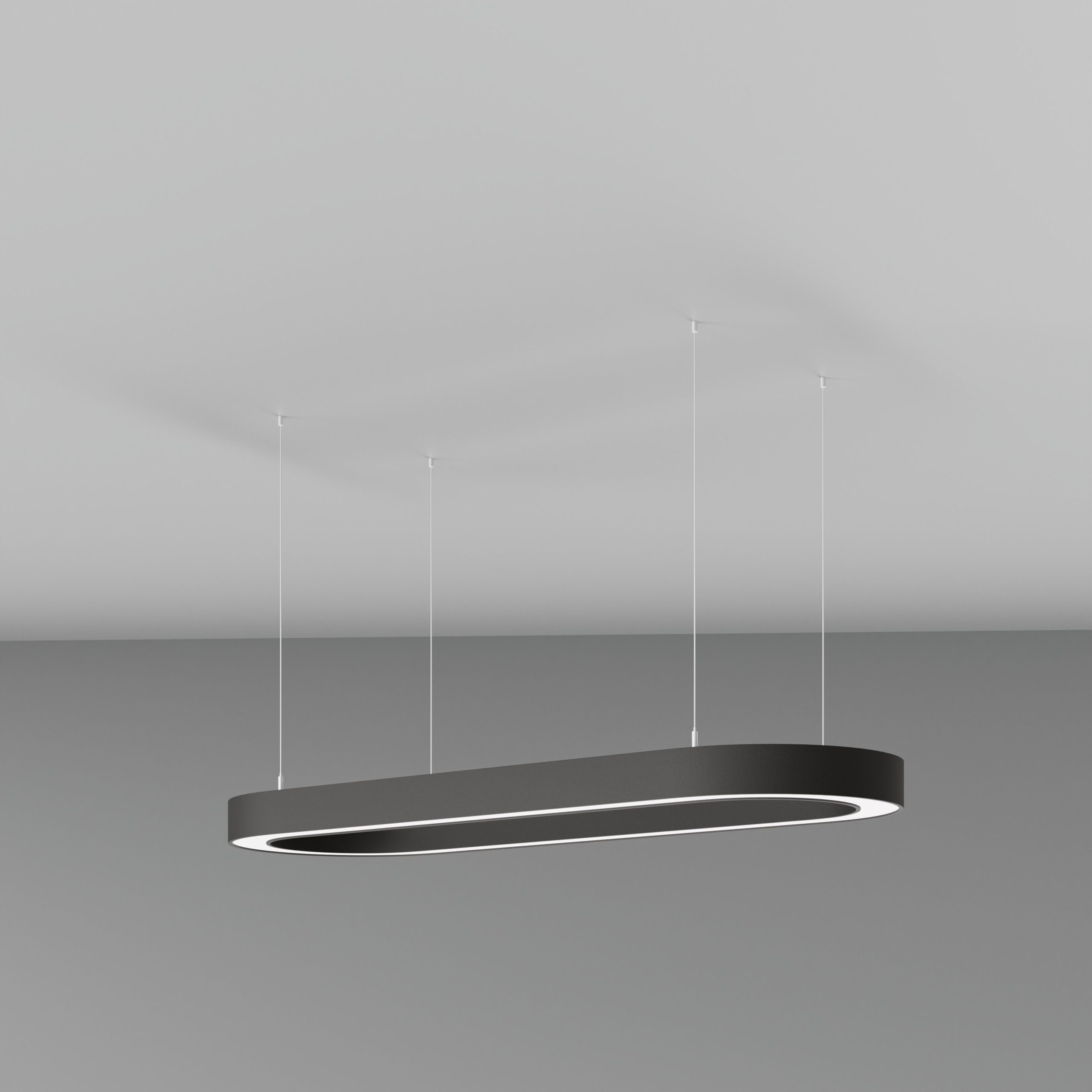

OVAL LED
Oval pendlad armatur för inomhusinstallation. Lämpad för kontor, affärer, gallerior, institutioner, korridorer etc. Finns i färger vit och svart med styrningsval DALI eller ND (icke-dimbar). Finns i flera färgtemperaturer.
OVAL LED
Armatur gjord av anodiserad aluminium med satinfinish och finns i svart eller vit färg. Konvertern är konstruerad för lång livslängd och låg effektförlust, med konstant ström och kompatibilitet med ENEC-standarden.
Suspensionen består av 1 mm stålvajer och nikkelförgyllda mässingskomponenter med justerbar höjd. Armaturen levereras med transparent elkabel och takmonterad elektrisk kopplingsbox med estetisk design.
Färgalternativ: vit, svart. Användningsområden inkluderar köpcentrum, stormarknader, kontor, mötesrum, butiker, sjukhus, skolor, korridorer.
Tillval: dimbar DALI-driver, nödkit.
| Art nr. | Se artiklar > |
|---|---|
| Användningsområden | |
| Material |
Aluminium |
| Färg |
Svart Ral-9005| Vit RAL-9003 |
| Optik |
KO -Opal Diffuser |
| Montering |
Pendlade -nerljus |
| Effekt (Watt) | 53W|66W| - 79W|80W|92W|100W|120W|140W |
| Styrning |
DALI| ND (On/Off) |
| Färgtemperatur (CCT) | 2700K|3000K| - 4000K|6500K |
| Lumen (lm) | 5170lm|6460lm| - 7755lm|7780lm|9045lm|9725lm|11670lm|13615lm |
| CRI |
80+ |
| IP-class |
IP40 |
| Längd | 1010mm|1290mm| - 1571mm|1851mm |
| Bredd | 447mm |
| Höjd | 73mm |
| Dimensioner | N/A |
| Markings | |
| Vikt | 5.5kg|7.5kg| - 9kg|11kg |
Art. nr | Färg | Effekt | Styrning | CCT | Lumen | Längd | Vikt |
|---|---|---|---|---|---|---|---|
| 90352-03-7-3 | Vit RAL-9003 | 53W | DALI | 3000K | 5170 lm | 1010 mm | 5.5 kg |
| 90352-03-3 | Vit RAL-9003 | 53W | ND (On/Off) | 3000K | 5170 lm | 1010 mm | 5.5 kg |
| 90352-03-7-4 | Vit RAL-9003 | 53W | DALI | 4000K | 5170 lm | 1010 mm | 5.5 kg |
| 90352-03-4 | Vit RAL-9003 | 53W | ND (On/Off) | 4000K | 5170 lm | 1010 mm | 5.5 kg |
| 90353-03-7-3 | Vit RAL-9003 | 66W | DALI | 3000K | 6460 lm | 1290 mm | 7.5 kg |
| 90353-03-3 | Vit RAL-9003 | 66W | ND (On/Off) | 3000K | 6460 lm | 1290 mm | 7.5 kg |
| 90353-03-7-4 | Vit RAL-9003 | 66W | DALI | 4000K | 6460 lm | 1290 mm | 7.5 kg |
| 90353-03-4 | Vit RAL-9003 | 66W | ND (On/Off) | 4000K | 6460 lm | 1290 mm | 7.5 kg |
| 90354-03-7-3 | Vit RAL-9003 | 79W | DALI | 3000K | 7755 lm | 1571 mm | 9 kg |
| 90354-03-3 | Vit RAL-9003 | 79W | ND (On/Off) | 3000K | 7755 lm | 1571 mm | 9 kg |
| 90354-03-7-4 | Vit RAL-9003 | 79W | DALI | 4000K | 7755 lm | 1571 mm | 9 kg |
| 90354-03-4 | Vit RAL-9003 | 79W | ND (On/Off) | 4000K | 7755 lm | 1571 mm | 9 kg |
| 90355-03-7-3 | Vit RAL-9003 | 80W | DALI | 3000K | 7780 lm | 1010 mm | 5.5 kg |
| 90355-03-3 | Vit RAL-9003 | 80W | ND (On/Off) | 3000K | 7780 lm | 1010 mm | 5.5 kg |
| 90355-03-7-4 | Vit RAL-9003 | 80W | DALI | 4000K | 7780 lm | 1010 mm | 5.5 kg |
| 90355-03-4 | Vit RAL-9003 | 80W | ND (On/Off) | 4000K | 7780 lm | 1010 mm | 5.5 kg |
| 90356-03-7-3 | Vit RAL-9003 | 92W | DALI | 3000K | 9045 lm | 1851 mm | 11 kg |
| 90356-03-3 | Vit RAL-9003 | 92W | ND (On/Off) | 3000K | 9045 lm | 1851 mm | 11 kg |
| 90356-03-7-4 | Vit RAL-9003 | 92W | DALI | 4000K | 9045 lm | 1851 mm | 11 kg |
| 90356-03-4 | Vit RAL-9003 | 92W | ND (On/Off) | 4000K | 9045 lm | 1851 mm | 11 kg |
| 90357-03-7-3 | Vit RAL-9003 | 100W | DALI | 3000K | 9725 lm | 1290 mm | 7.5 kg |
| 90357-03-3 | Vit RAL-9003 | 100W | ND (On/Off) | 3000K | 9725 lm | 1290 mm | 7.5 kg |
| 90357-03-7-4 | Vit RAL-9003 | 100W | DALI | 4000K | 9725 lm | 1290 mm | 7.5 kg |
| 90357-03-4 | Vit RAL-9003 | 100W | ND (On/Off) | 4000K | 9725 lm | 1290 mm | 7.5 kg |
| 90358-03-7-3 | Vit RAL-9003 | 120W | DALI | 3000K | 11670 lm | 1571 mm | 9 kg |
| 90358-03-3 | Vit RAL-9003 | 120W | ND (On/Off) | 3000K | 11670 lm | 1571 mm | 9 kg |
| 90358-03-7-4 | Vit RAL-9003 | 120W | DALI | 4000K | 11670 lm | 1571 mm | 9 kg |
| 90358-03-4 | Vit RAL-9003 | 120W | ND (On/Off) | 4000K | 11670 lm | 1571 mm | 9 kg |
| 90359-03-7-3 | Vit RAL-9003 | 140W | DALI | 3000K | 13615 lm | 1851 mm | 11 kg |
| 90359-03-3 | Vit RAL-9003 | 140W | ND (On/Off) | 3000K | 13615 lm | 1851 mm | 11 kg |
| 90359-03-7-4 | Vit RAL-9003 | 140W | DALI | 4000K | 13615 lm | 1851 mm | 11 kg |
| 90359-03-4 | Vit RAL-9003 | 140W | ND (On/Off) | 4000K | 13615 lm | 1851 mm | 11 kg |
| 90352-05-7-3 | Svart Ral-9005 | 53W | DALI | 3000K | 5170 lm | 1010 mm | 5.5 kg |
| 90352-05-3 | Svart Ral-9005 | 53W | ND (On/Off) | 3000K | 5170 lm | 1010 mm | 5.5 kg |
| 90352-05-7-4 | Svart Ral-9005 | 53W | DALI | 4000K | 5170 lm | 1010 mm | 5.5 kg |
| 90352-05-4 | Svart Ral-9005 | 53W | ND (On/Off) | 4000K | 5170 lm | 1010 mm | 5.5 kg |
| 90353-05-7-3 | Svart Ral-9005 | 66W | DALI | 3000K | 6460 lm | 1290 mm | 7.5 kg |
| 90353-05-3 | Svart Ral-9005 | 66W | ND (On/Off) | 3000K | 6460 lm | 1290 mm | 7.5 kg |
| 90353-05-7-4 | Svart Ral-9005 | 66W | DALI | 4000K | 6460 lm | 1290 mm | 7.5 kg |
| 90353-05-4 | Svart Ral-9005 | 66W | ND (On/Off) | 4000K | 6460 lm | 1290 mm | 7.5 kg |
| 90354-05-7-3 | Svart Ral-9005 | 79W | DALI | 3000K | 7755 lm | 1571 mm | 9 kg |
| 90354-05-3 | Svart Ral-9005 | 79W | ND (On/Off) | 3000K | 7755 lm | 1571 mm | 9 kg |
| 90354-05-7-4 | Svart Ral-9005 | 79W | DALI | 4000K | 7755 lm | 1571 mm | 9 kg |
| 90354-05-4 | Svart Ral-9005 | 79W | ND (On/Off) | 4000K | 7755 lm | 1571 mm | 9 kg |
| 90355-05-7-3 | Svart Ral-9005 | 80W | DALI | 3000K | 7780 lm | 1010 mm | 5.5 kg |
| 90355-05-3 | Svart Ral-9005 | 80W | ND (On/Off) | 3000K | 7780 lm | 1010 mm | 5.5 kg |
| 90355-05-7-4 | Svart Ral-9005 | 80W | DALI | 4000K | 7780 lm | 1010 mm | 5.5 kg |
| 90355-05-4 | Svart Ral-9005 | 80W | ND (On/Off) | 4000K | 7780 lm | 1010 mm | 5.5 kg |
| 90356-05-7-3 | Svart Ral-9005 | 92W | DALI | 3000K | 9045 lm | 1851 mm | 11 kg |
| 90356-05-3 | Svart Ral-9005 | 92W | ND (On/Off) | 3000K | 9045 lm | 1851 mm | 11 kg |
| 90356-05-7-4 | Svart Ral-9005 | 92W | DALI | 4000K | 9045 lm | 1851 mm | 11 kg |
| 90356-05-4 | Svart Ral-9005 | 92W | ND (On/Off) | 4000K | 9045 lm | 1851 mm | 11 kg |
| 90357-05-7-3 | Svart Ral-9005 | 100W | DALI | 3000K | 9725 lm | 1290 mm | 7.5 kg |
| 90357-05-3 | Svart Ral-9005 | 100W | ND (On/Off) | 3000K | 9725 lm | 1290 mm | 7.5 kg |
| 90357-05-7-4 | Svart Ral-9005 | 100W | DALI | 4000K | 9725 lm | 1290 mm | 7.5 kg |
| 90357-05-4 | Svart Ral-9005 | 100W | ND (On/Off) | 4000K | 9725 lm | 1290 mm | 7.5 kg |
| 90358-05-7-3 | Svart Ral-9005 | 120W | DALI | 3000K | 11670 lm | 1571 mm | 9 kg |
| 90358-05-3 | Svart Ral-9005 | 120W | ND (On/Off) | 3000K | 11670 lm | 1571 mm | 9 kg |
| 90358-05-7-4 | Svart Ral-9005 | 120W | DALI | 4000K | 11670 lm | 1571 mm | 9 kg |
| 90358-05-4 | Svart Ral-9005 | 120W | ND (On/Off) | 4000K | 11670 lm | 1571 mm | 9 kg |
| 90359-05-7-3 | Svart Ral-9005 | 140W | DALI | 3000K | 13615 lm | 1851 mm | 11 kg |
| 90359-05-3 | Svart Ral-9005 | 140W | ND (On/Off) | 3000K | 13615 lm | 1851 mm | 11 kg |
| 90359-05-7-4 | Svart Ral-9005 | 140W | DALI | 4000K | 13615 lm | 1851 mm | 11 kg |
| 90359-05-4 | Svart Ral-9005 | 140W | ND (On/Off) | 4000K | 13615 lm | 1851 mm | 11 kg |
Document (PDF)
PRODUKTBLAD PDF  |
