PIAZZA LED
Pendlad armatur för inomhusinstallation. Lämpad för kontor, affärer, gallerior, institutioner, korridorer etc. Finns i vit eller svart färg, med styrningsval DALI eller ND (icke-dimbar). Finns i flera färgtemperaturer.
PIAZZA LED

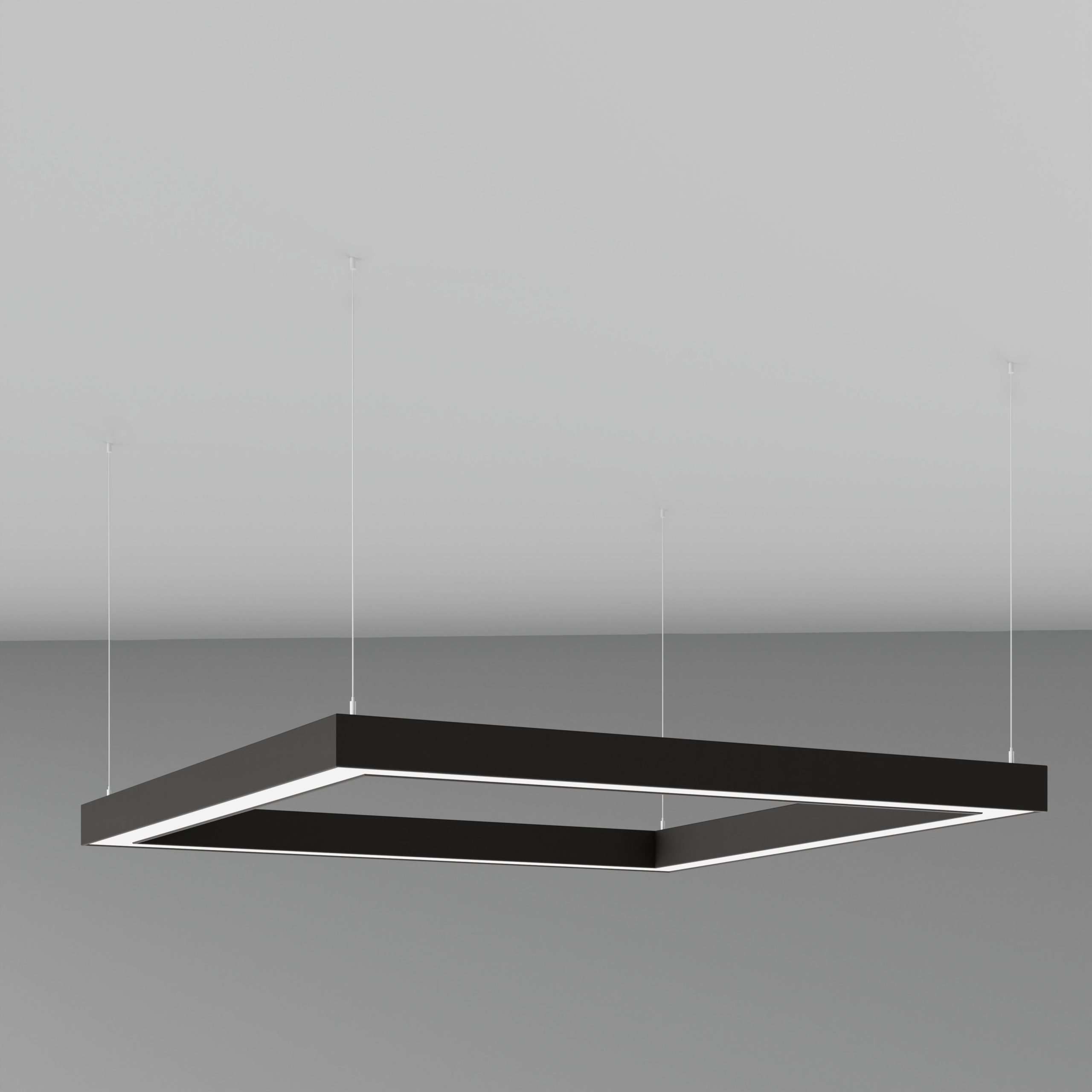

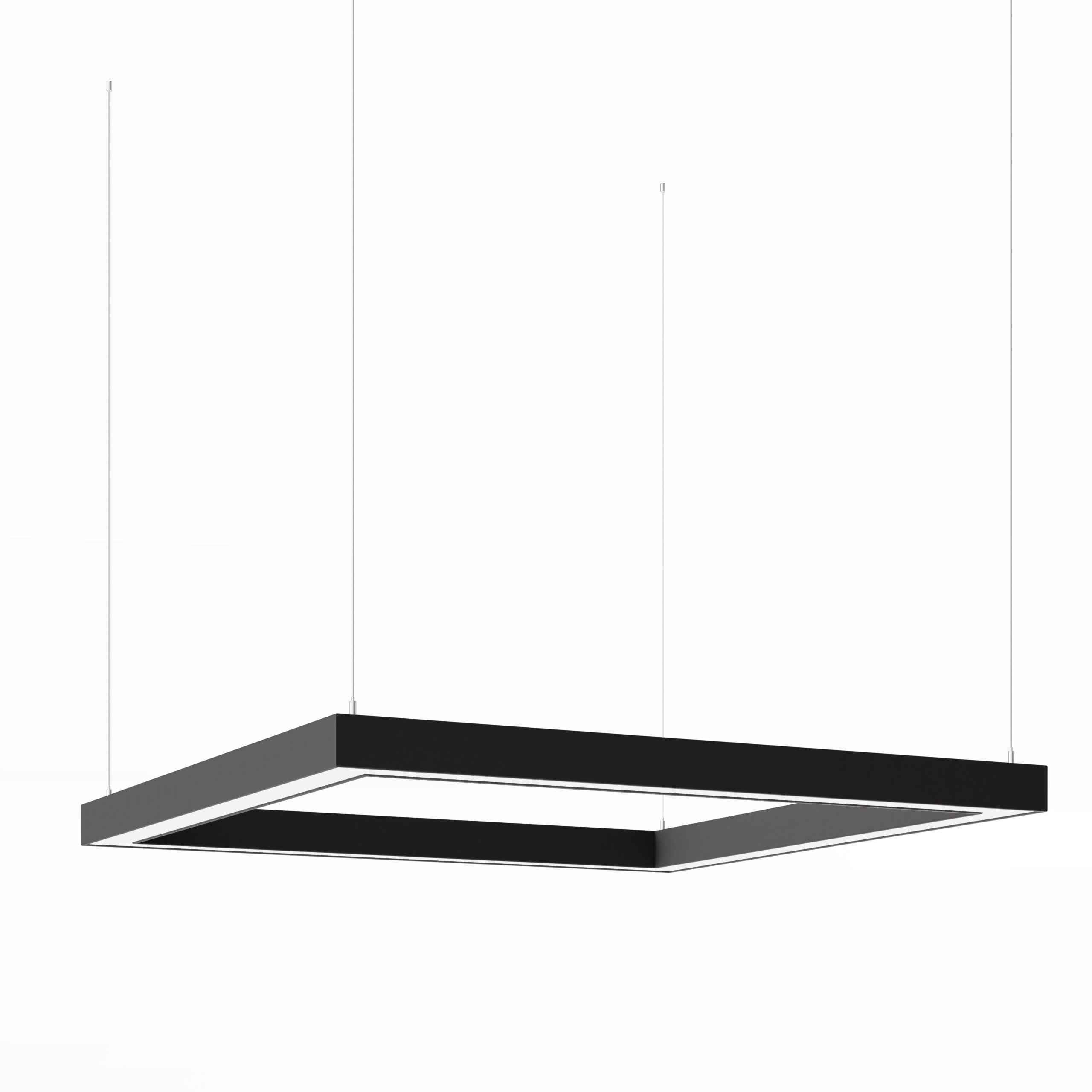

Hängande lampa med kropp av anodiserad aluminium och satinfinish, tillgänglig i svart eller vit färg med en elegant design. Konvertern är utformad för lång livslängd och låg effektförlust, med konstant ström och kompatibilitet enligt ENEC-standarderna.
Suspendeingen består av 1 mm stålvajer och nikkelförgyllda mässingskomponenter med justerbar höjd. Lampan levereras med transparent elkabel och takmonterad elektrisk kopplingsbox med estetisk design.
Färgalternativen är vit och svart, och lampan är lämplig för olika områden som köpcentrum, stormarknader, kontor, mötesrum, butiker, sjukhus, skolor och korridorer.
Tillvalsfunktioner inkluderar en dimbar DALI-driver och ett nödkit för ökad flexibilitet och säkerhet.
| Art nr. | Se artiklar > |
|---|---|
| Användningsområden | |
| Material |
Aluminium |
| Färg |
Svart Ral-9005 |Vit RAL-9003 |
| Optik |
KO -Opal Diffuser |
| Montering |
Pendlade -nerljus |
| Effekt (Watt) | 53W | 66W | - 79W | 79W | 92W | 105W | 105W | 132W | 158W | 205W |
| Styrning |
DALI |ND (On/Off) |
| Färgtemperatur (CCT) | 2700K | 3000K | - 4000K|6500K |
| Lumen (lm) | 4790lm | 5985lm | - 7185lm | 8380lm | 9580lm | 11970lm | 14365lm | 19155lm |
| CRI |
80+ |
| IP-class |
IP40 |
| Längd | 640mm|921mm| - 1201mm|1482mm|1763mm|2325mm |
| Bredd | 640mm|921mm| - 1201mm|1482mm|1763mm|2325mm |
| Höjd | 90mm |
| Dimensioner | N/A |
| Markings | | | |
Avsäkringstabell
| Type | B10A | B16A | B20A | B25A | C10A | C16A | C20A | C25A |
|---|---|---|---|---|---|---|---|---|
| 90467x (53W DALI) | 13 | 21 | 27 | 21 | 35 | 45 | ||
| 90468x (66W DALI) | 13 | 21 | 27 | 21 | 35 | 45 | ||
| 90469x (79W DALI) | 6 | 11 | 13 | 10 | 12 | 15 | ||
| 90470x (79W DALI) | 6 | 11 | 13 | 10 | 12 | 15 | ||
| 90471x (92W DALI) | 6 | 11 | 13 | 10 | 12 | 15 | ||
| 90472x (105W DALI) | 6 | 10 | 13 | 10 | 17 | 22 | ||
| 90473x (105W DALI) | 6 | 10 | 13 | 10 | 17 | 22 | ||
| 90474x (132W DALI) | 6 | 10 | 13 | 10 | 17 | 22 | ||
| 90475x (158W DALI) | 3 | 5 | 6 | 5 | 9 | 11 | ||
| 90476x (205W DALI) | 4 | 7 | 9 | 7 | 11 | 15 | ||
| 90467x (53W ND) | 8 | 14 | 19 | 13 | 23 | 32 | ||
| 90468x (66W ND) | 6 | 11 | 14 | 11 | 18 | 24 | ||
| 90469x (79W ND) | 6 | 11 | 14 | 11 | 18 | 24 | ||
| 90470x (79W ND) | 6 | 11 | 14 | 11 | 18 | 24 | ||
| 90471x (92W ND) | 6 | 11 | 14 | 11 | 18 | 24 | ||
| 90472x (105W ND) | 4 | 7 | 9 | 6 | 11 | 16 | ||
| 90473x (105W ND) | 4 | 7 | 9 | 6 | 11 | 16 | ||
| 90474x (132W ND) | 4 | 7 | 9 | 6 | 11 | 16 | ||
| 90475x (158W ND) | 3 | 5 | 7 | 5 | 9 | 12 | ||
| 90476x (205W ND) | 2 | 3 | 4 | 3 | 5 | 8 |
Art. nr | Färg | Effekt | Styrning | CCT | Lumen | Längd | Bredd |
|---|---|---|---|---|---|---|---|
| 90467-03-7-3 | Vit RAL-9003 | 53W | DALI | 3000K | 4790 lm | 640 mm | 640 mm |
| 90467-03-3 | Vit RAL-9003 | 53W | ND (On/Off) | 3000K | 4790 lm | 640 mm | 640 mm |
| 90467-03-7-4 | Vit RAL-9003 | 53W | DALI | 4000K | 4790 lm | 640 mm | 640 mm |
| 90467-03-4 | Vit RAL-9003 | 53W | ND (On/Off) | 4000K | 4790 lm | 640 mm | 640 mm |
| 90468-03-7-3 | Vit RAL-9003 | 66W | DALI | 3000K | 5985 lm | 921 mm | 640 mm |
| 90468-03-3 | Vit RAL-9003 | 66W | ND (On/Off) | 3000K | 5985 lm | 921 mm | 640 mm |
| 90468-03-7-4 | Vit RAL-9003 | 66W | DALI | 4000K | 5985 lm | 921 mm | 640 mm |
| 90468-03-4 | Vit RAL-9003 | 66W | ND (On/Off) | 4000K | 5985 lm | 921 mm | 640 mm |
| 90469-03-7-3 | Vit RAL-9003 | 79W | DALI | 3000K | 7185 lm | 921 mm | 921 mm |
| 90469-03-3 | Vit RAL-9003 | 79W | ND (On/Off) | 3000K | 7185 lm | 921 mm | 921 mm |
| 90469-03-7-4 | Vit RAL-9003 | 79W | DALI | 4000K | 7185 lm | 921 mm | 921 mm |
| 90469-03-4 | Vit RAL-9003 | 79W | ND (On/Off) | 4000K | 7185 lm | 921 mm | 921 mm |
| 90470-03-7-3 | Vit RAL-9003 | 79W | DALI | 3000K | 7185 lm | 1201 mm | 640 mm |
| 90470-03-3 | Vit RAL-9003 | 79W | ND (On/Off) | 3000K | 7185 lm | 1201 mm | 640 mm |
| 90470-03-7-4 | Vit RAL-9003 | 79W | DALI | 4000K | 7185 lm | 1201 mm | 640 mm |
| 90470-03-4 | Vit RAL-9003 | 79W | ND (On/Off) | 4000K | 7185 lm | 1201 mm | 640 mm |
| 90471-03-7-3 | Vit RAL-9003 | 92W | DALI | 3000K | 8380 lm | 1201 mm | 921 mm |
| 90471-03-3 | Vit RAL-9003 | 92W | ND (On/Off) | 3000K | 8380 lm | 1201 mm | 921 mm |
| 90471-03-7-4 | Vit RAL-9003 | 92W | DALI | 4000K | 8380 lm | 1201 mm | 921 mm |
| 90471-03-4 | Vit RAL-9003 | 92W | ND (On/Off) | 4000K | 8380 lm | 1201 mm | 921 mm |
| 90472-03-7-3 | Vit RAL-9003 | 105W | DALI | 3000K | 9580 lm | 1201 mm | 1201 mm |
| 90472-03-3 | Vit RAL-9003 | 105W | ND (On/Off) | 3000K | 9580 lm | 1201 mm | 1201 mm |
| 90472-03-7-4 | Vit RAL-9003 | 105W | DALI | 4000K | 9580 lm | 1201 mm | 1201 mm |
| 90472-03-4 | Vit RAL-9003 | 105W | ND (On/Off) | 4000K | 9580 lm | 1201 mm | 1201 mm |
| 90473-03-7-3 | Vit RAL-9003 | 105W | DALI | 3000K | 9580 lm | 1482 mm | 921 mm |
| 90473-03-3 | Vit RAL-9003 | 105W | ND (On/Off) | 3000K | 9580 lm | 1482 mm | 921 mm |
| 90473-03-7-4 | Vit RAL-9003 | 105W | DALI | 4000K | 9580 lm | 1482 mm | 921 mm |
| 90473-03-4 | Vit RAL-9003 | 105W | ND (On/Off) | 4000K | 9580 lm | 1482 mm | 921 mm |
| 90474-03-7-3 | Vit RAL-9003 | 132W | DALI | 3000K | 11970 lm | 1482 mm | 1482 mm |
| 90474-03-3 | Vit RAL-9003 | 132W | ND (On/Off) | 3000K | 11970 lm | 1482 mm | 1482 mm |
| 90474-03-7-4 | Vit RAL-9003 | 132W | DALI | 4000K | 11970 lm | 1482 mm | 1482 mm |
| 90474-03-4 | Vit RAL-9003 | 132W | ND (On/Off) | 4000K | 11970 lm | 1482 mm | 1482 mm |
| 90475-03-7-3 | Vit RAL-9003 | 158W | DALI | 3000K | 14365 lm | 1763 mm | 1763 mm |
| 90475-03-3 | Vit RAL-9003 | 158W | ND (On/Off) | 3000K | 14365 lm | 1763 mm | 1763 mm |
| 90475-03-7-4 | Vit RAL-9003 | 158W | DALI | 4000K | 14365 lm | 1763 mm | 1763 mm |
| 90475-03-4 | Vit RAL-9003 | 158W | ND (On/Off) | 4000K | 14365 lm | 1763 mm | 1763 mm |
| 90476-03-7-3 | Vit RAL-9003 | 205W | DALI | 3000K | 19155 lm | 2325 mm | 2325 mm |
| 90476-03-3 | Vit RAL-9003 | 205W | ND (On/Off) | 3000K | 19155 lm | 2325 mm | 2325 mm |
| 90476-03-7-4 | Vit RAL-9003 | 205W | DALI | 4000K | 19155 lm | 2325 mm | 2325 mm |
| 90476-03-4 | Vit RAL-9003 | 205W | ND (On/Off) | 4000K | 19155 lm | 2325 mm | 2325 mm |
| 90467-05-7-3 | Svart Ral-9005 | 53W | DALI | 3000K | 4790 lm | 640 mm | 640 mm |
| 90467-05-3 | Svart Ral-9005 | 53W | ND (On/Off) | 3000K | 4790 lm | 640 mm | 640 mm |
| 90467-05-7-4 | Svart Ral-9005 | 53W | DALI | 4000K | 4790 lm | 640 mm | 640 mm |
| 90467-05-4 | Svart Ral-9005 | 53W | ND (On/Off) | 4000K | 4790 lm | 640 mm | 640 mm |
| 90468-05-7-3 | Svart Ral-9005 | 66W | DALI | 3000K | 5985 lm | 640 mm | 921 mm |
| 90468-05-3 | Svart Ral-9005 | 66W | ND (On/Off) | 3000K | 5985 lm | 640 mm | 921 mm |
| 90468-05-7-4 | Svart Ral-9005 | 66W | DALI | 4000K | 5985 lm | 640 mm | 921 mm |
| 90468-05-4 | Svart Ral-9005 | 66W | ND (On/Off) | 4000K | 5985 lm | 640 mm | 921 mm |
| 90469-05-7-3 | Svart Ral-9005 | 79W | DALI | 3000K | 7185 lm | 921 mm | 921 mm |
| 90469-05-3 | Svart Ral-9005 | 79W | ND (On/Off) | 3000K | 7185 lm | 921 mm | 921 mm |
| 90469-05-7-4 | Svart Ral-9005 | 79W | DALI | 4000K | 7185 lm | 921 mm | 921 mm |
| 90469-05-4 | Svart Ral-9005 | 79W | ND (On/Off) | 4000K | 7185 lm | 921 mm | 921 mm |
| 90470-05-7-3 | Svart Ral-9005 | 79W | DALI | 3000K | 7185 lm | 1201 mm | 640 mm |
| 90470-05-3 | Svart Ral-9005 | 79W | ND (On/Off) | 3000K | 7185 lm | 1201 mm | 640 mm |
| 90470-05-7-4 | Svart Ral-9005 | 79W | DALI | 4000K | 7185 lm | 1201 mm | 640 mm |
| 90470-05-4 | Svart Ral-9005 | 79W | ND (On/Off) | 4000K | 7185 lm | 1201 mm | 640 mm |
| 90471-05-7-3 | Svart Ral-9005 | 92W | DALI | 3000K | 8380 lm | 1201 mm | 921 mm |
| 90471-05-3 | Svart Ral-9005 | 92W | ND (On/Off) | 3000K | 8380 lm | 1201 mm | 921 mm |
| 90471-05-7-4 | Svart Ral-9005 | 92W | DALI | 4000K | 8380 lm | 1201 mm | 921 mm |
| 90471-05-4 | Svart Ral-9005 | 92W | ND (On/Off) | 4000K | 8380 lm | 1201 mm | 921 mm |
| 90472-05-7-3 | Svart Ral-9005 | 105W | DALI | 3000K | 9580 lm | 1201 mm | 1201 mm |
| 90472-05-3 | Svart Ral-9005 | 105W | ND (On/Off) | 3000K | 9580 lm | 1201 mm | 1201 mm |
| 90472-05-7-4 | Svart Ral-9005 | 105W | DALI | 4000K | 9580 lm | 1201 mm | 1201 mm |
| 90472-05-4 | Svart Ral-9005 | 105W | ND (On/Off) | 4000K | 9580 lm | 1201 mm | 1201 mm |
| 90473-05-7-3 | Svart Ral-9005 | 105W | DALI | 3000K | 9580 lm | 1482 mm | 921 mm |
| 90473-05-3 | Svart Ral-9005 | 105W | ND (On/Off) | 3000K | 9580 lm | 1482 mm | 921 mm |
| 90473-05-7-4 | Svart Ral-9005 | 105W | DALI | 4000K | 9580 lm | 1482 mm | 921 mm |
| 90473-05-4 | Svart Ral-9005 | 105W | ND (On/Off) | 4000K | 9580 lm | 1482 mm | 921 mm |
| 90474-05-7-3 | Svart Ral-9005 | 132W | DALI | 3000K | 11970 lm | 1482 mm | 1482 mm |
| 90474-05-3 | Svart Ral-9005 | 132W | ND (On/Off) | 3000K | 11970 lm | 1482 mm | 1482 mm |
| 90474-05-7-4 | Svart Ral-9005 | 132W | DALI | 4000K | 11970 lm | 1482 mm | 1482 mm |
| 90474-05-4 | Svart Ral-9005 | 132W | ND (On/Off) | 4000K | 11970 lm | 1482 mm | 1482 mm |
| 90475-05-7-3 | Svart Ral-9005 | 158W | DALI | 3000K | 14365 lm | 1763 mm | 1763 mm |
| 90475-05-3 | Svart Ral-9005 | 158W | ND (On/Off) | 3000K | 14365 lm | 1763 mm | 1763 mm |
| 90475-05-7-4 | Svart Ral-9005 | 158W | DALI | 4000K | 14365 lm | 1763 mm | 1763 mm |
| 90475-05-4 | Svart Ral-9005 | 158W | ND (On/Off) | 4000K | 14365 lm | 1763 mm | 1763 mm |
| 90476-05-7-3 | Svart Ral-9005 | 205W | DALI | 3000K | 19155 lm | 2325 mm | 2325 mm |
| 90476-05-3 | Svart Ral-9005 | 205W | ND (On/Off) | 3000K | 19155 lm | 2325 mm | 2325 mm |
| 90476-05-7-4 | Svart Ral-9005 | 205W | DALI | 4000K | 19155 lm | 2325 mm | 2325 mm |
| 90476-05-4 | Svart Ral-9005 | 205W | ND (On/Off) | 4000K | 19155 lm | 2325 mm | 2325 mm |
