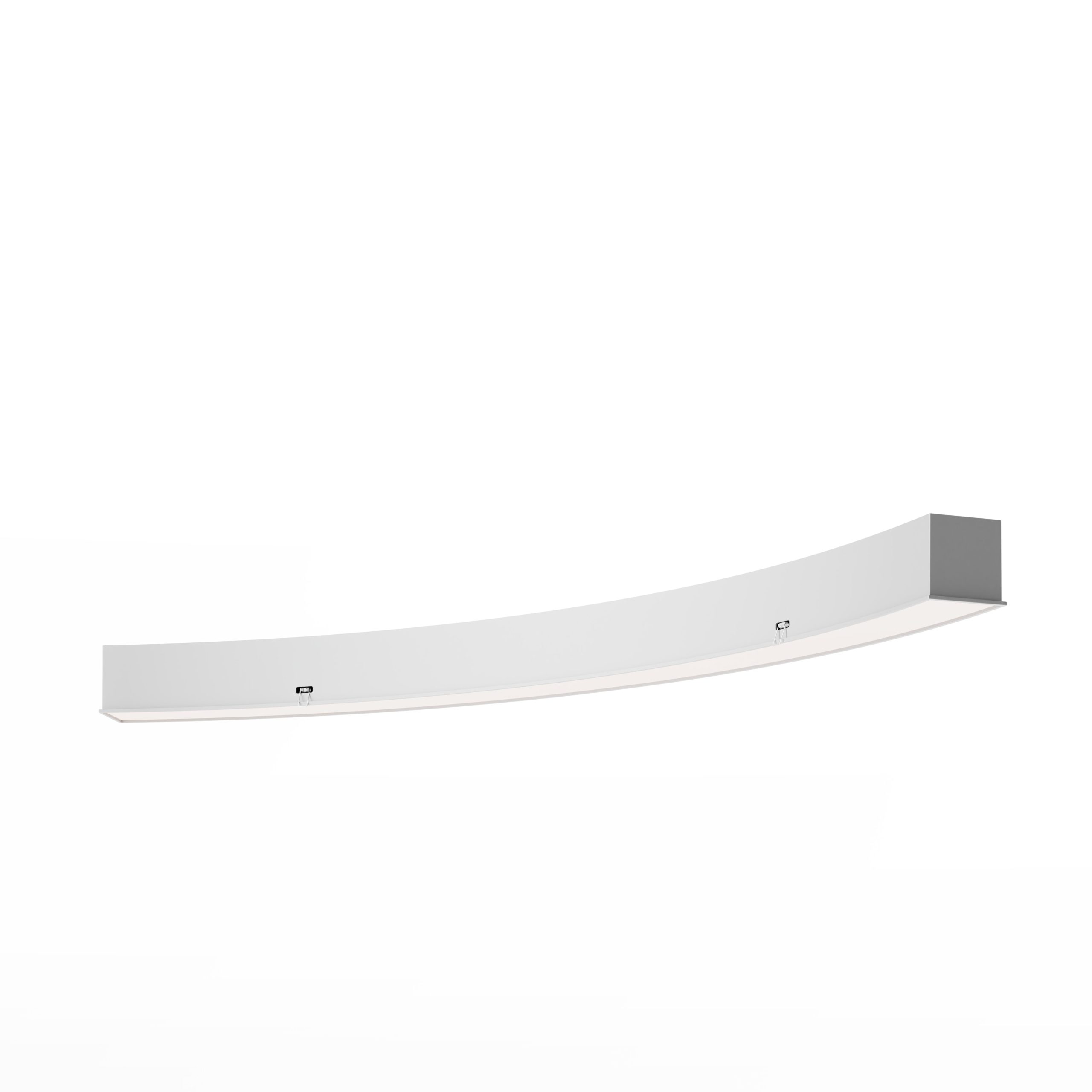

SOLTURA LED
Takinfälld armatur för inomhusinstallation. Lämpad för kontor, affärer, gallerior, institutioner, korridorer etc. Finns i vit färg (svart på begäran) med styrningsval DALI eller ND (icke-dimbar). Finns i flera färgtemperaturer. Finns i olika former och vinklar.
SOLTURA LED
Takinfälld lampa med kropp av anodiserad aluminium och satinfinish, tillgänglig i svart eller vit färg med en stilren design. Konvertern är utformad för lång livslängd och låg effektförlust, med konstant ström och kompatibilitet enligt ENEC-standarderna.
SOLTURA finns i flera former (se produktblad för jämförelse) och lampan är idealisk för takinfällning i shoppingcenter, stormarknader, kontor, mötesrum, butiker, sjukhus och skolor.
Tillvalsfunktioner inkluderar en dimbar DALI-driver och ett nödkit för ökad flexibilitet och säkerhet.
| Art nr. | Se artiklar > |
|---|---|
| Användningsområden | |
| Material |
Aluminium |
| Färg |
Vit RAL-9003 |
| Optik |
KO -Opal Diffuser |
| Montering |
Infälld |
| Effekt (Watt) | 8W|14W| - 21W|26W|33W|39W|47W|53W|60W|66W|79W|92W|105W |
| Styrning |
DALI| ND (On/Off) |
| Färgtemperatur (CCT) | 2700K|3000K| - 4000K|6500K |
| Lumen (lm) | 640lm|1275lm| - 1910lm|2550lm|3185lm|3820lm|4455lm|5095lm|5730lm|6365lm|7640lm|8915lm|10185lm |
| CRI |
80+ |
| IP-class |
IP40 |
| Form |
180°| 90°| 45°| Rak| 1| 2| 3| 4| 5| 6| 7 |
| Diameter (mm) | 800mm|1155mm| - 1500mm|1890mm|2255mm|2610mm|2950mm|3315mm|3675mm |
| Längd | |282mm| - 565mm|845mm|1125mm|1405mm|1685mm|1965mm|2254mm|2525mm|2810mm |
| Höjd | 84mm |
| Profilmått Bxh |
84×84 |
| Dimensioner | N/A |
| Markings |
Art. nr | Effekt | Styrning | CCT | Lumen | Form | Diameter | Längd |
|---|---|---|---|---|---|---|---|
| 90377-03-7-3 | 26W | DALI | 3000K | 2550 lm | 180° | 800 mm | |
| 90377-03-3 | 26W | ND (On/Off) | 3000K | 2550 lm | 180° | 800 mm | |
| 90377-03-7-4 | 26W | DALI | 4000K | 2550 lm | 180° | 800 mm | |
| 90377-03-4 | 26W | ND (On/Off) | 4000K | 2550 lm | 180° | 800 mm | |
| 90378-03-7-3 | 39W | DALI | 3000K | 3820 lm | 180° | 1155 mm | |
| 90378-03-3 | 39W | ND (On/Off) | 3000K | 3820 lm | 180° | 1155 mm | |
| 90378-03-7-4 | 39W | DALI | 4000K | 3820 lm | 180° | 1155 mm | |
| 90378-03-4 | 39W | ND (On/Off) | 4000K | 3820 lm | 180° | 1155 mm | |
| 90379-03-7-3 | 53W | DALI | 3000K | 5095 lm | 180° | 1500 mm | |
| 90379-03-3 | 53W | ND (On/Off) | 3000K | 5095 lm | 180° | 1500 mm | |
| 90379-03-7-4 | 53W | DALI | 4000K | 5095 lm | 180° | 1500 mm | |
| 90379-03-4 | 53W | ND (On/Off) | 4000K | 5095 lm | 180° | 1500 mm | |
| 90380-03-7-3 | 66W | DALI | 3000K | 6365 lm | 180° | 1890 mm | |
| 90380-03-3 | 66W | ND (On/Off) | 3000K | 6365 lm | 180° | 1890 mm | |
| 90380-03-7-4 | 66W | DALI | 4000K | 6365 lm | 180° | 1890 mm | |
| 90380-03-4 | 66W | ND (On/Off) | 4000K | 6365 lm | 180° | 1890 mm | |
| 90381-03-7-3 | 79W | DALI | 3000K | 7640 lm | 180° | 2255 mm | |
| 90381-03-3 | 79W | ND (On/Off) | 3000K | 7640 lm | 180° | 2255 mm | |
| 90381-03-7-4 | 79W | DALI | 4000K | 7640 lm | 180° | 2255 mm | |
| 90381-03-4 | 79W | ND (On/Off) | 4000K | 7640 lm | 180° | 2255 mm | |
| 90382-03-7-3 | 92W | DALI | 3000K | 8915 lm | 180° | 2610 mm | |
| 90382-03-3 | 92W | ND (On/Off) | 3000K | 8915 lm | 180° | 2610 mm | |
| 90382-03-7-4 | 92W | DALI | 4000K | 8915 lm | 180° | 2610 mm | |
| 90382-03-4 | 92W | ND (On/Off) | 4000K | 8915 lm | 180° | 2610 mm | |
| 90383-03-7-3 | 105W | DALI | 3000K | 10185 lm | 180° | 2950 mm | |
| 90383-03-3 | 105W | ND (On/Off) | 3000K | 10185 lm | 180° | 2950 mm | |
| 90383-03-7-4 | 105W | DALI | 4000K | 10185 lm | 180° | 2950 mm | |
| 90383-03-4 | 105W | ND (On/Off) | 4000K | 10185 lm | 180° | 2950 mm | |
| 90384-03-7-3 | 14W | DALI | 3000K | 1275 lm | 90° | 800 mm | |
| 90384-03-3 | 14W | ND (On/Off) | 3000K | 1275 lm | 90° | 800 mm | |
| 90384-03-7-4 | 14W | DALI | 4000K | 1275 lm | 90° | 800 mm | |
| 90384-03-4 | 14W | ND (On/Off) | 4000K | 1275 lm | 90° | 800 mm | |
| 90385-03-7-3 | 21W | ND (On/Off) | 3000K | 1910 lm | 90° | 1155 mm | |
| 90385-03-3 | 21W | ND (On/Off) | 3000K | 1910 lm | 90° | 1155 mm | |
| 90385-03-7-4 | 21W | DALI | 4000K | 1910 lm | 90° | 1155 mm | |
| 90385-03-4 | 21W | ND (On/Off) | 4000K | 1910 lm | 90° | 1155 mm | |
| 90386-03-7-3 | 26W | DALI | 3000K | 2550 lm | 90° | 1500 mm | |
| 90386-03-3 | 26W | ND (On/Off) | 3000K | 2550 lm | 90° | 1500 mm | |
| 90386-03-7-4 | 26W | DALI | 4000K | 2550 lm | 90° | 1500 mm | |
| 90386-03-4 | 26W | ND (On/Off) | 4000K | 2550 lm | 90° | 1500 mm | |
| 90387-03-7-3 | 33W | DALI | 3000K | 3185 lm | 90° | 1890 mm | |
| 90387-03-3 | 33W | ND (On/Off) | 3000K | 3185 lm | 90° | 1890 mm | |
| 90387-03-7-4 | 33W | DALI | 4000K | 3185 lm | 90° | 1890 mm | |
| 90387-03-4 | 33W | ND (On/Off) | 4000K | 3185 lm | 90° | 1890 mm | |
| 90388-03-7-3 | 39W | DALI | 3000K | 3820 lm | 90° | 2255 mm | |
| 90388-03-3 | 39W | ND (On/Off) | 3000K | 3820 lm | 90° | 2255 mm | |
| 90388-03-7-4 | 39W | DALI | 4000K | 3820 lm | 90° | 2255 mm | |
| 90388-03-4 | 39W | ND (On/Off) | 4000K | 3820 lm | 90° | 2255 mm | |
| 90389-03-7-3 | 47W | DALI | 3000K | 4455 lm | 90° | 2610 mm | |
| 90389-03-3 | 47W | ND (On/Off) | 3000K | 4455 lm | 90° | 2610 mm | |
| 90389-03-7-4 | 47W | DALI | 4000K | 4455 lm | 90° | 2610 mm | |
| 90389-03-4 | 47W | ND (On/Off) | 4000K | 4455 lm | 90° | 2610 mm | |
| 90390-03-7-3 | 53W | DALI | 3000K | 5095 lm | 90° | 2950 mm | |
| 90390-03-3 | 53W | ND (On/Off) | 3000K | 5095 lm | 90° | 2950 mm | |
| 90390-03-7-4 | 53W | DALI | 4000K | 5095 lm | 90° | 2950 mm | |
| 90390-03-4 | 53W | ND (On/Off) | 4000K | 5095 lm | 90° | 2950 mm | |
| 90391-03-7-3 | 60W | DALI | 3000K | 5730 lm | 90° | 3315 mm | |
| 90391-03-3 | 60W | ND (On/Off) | 3000K | 5730 lm | 90° | 3315 mm | |
| 90391-03-7-4 | 60W | DALI | 4000K | 5730 lm | 90° | 3315 mm | |
| 90391-03-4 | 60W | ND (On/Off) | 4000K | 5730 lm | 90° | 3315 mm | |
| 90392-03-7-3 | 66W | DALI | 3000K | 6365 lm | 90° | 3675 mm | |
| 90392-03-3 | 66W | ND (On/Off) | 3000K | 6365 lm | 90° | 3675 mm | |
| 90392-03-7-4 | 66W | DALI | 4000K | 6365 lm | 90° | 3675 mm | |
| 90392-03-4 | 66W | ND (On/Off) | 4000K | 6365 lm | 90° | 3675 mm | |
| 90393-03-7-3 | 8W | DALI | 3000K | 640 lm | 45° | 800 mm | |
| 90393-03-3 | 8W | ND (On/Off) | 3000K | 640 lm | 45° | 800 mm | |
| 90393-03-7-4 | 8W | DALI | 4000K | 640 lm | 45° | 800 mm | |
| 90393-03-4 | 8W | ND (On/Off) | 4000K | 640 lm | 45° | 800 mm | |
| 90394-03-7-3 | 14W | DALI | 3000K | 1275 lm | 45° | 1500 mm | |
| 90394-03-3 | 14W | ND (On/Off) | 3000K | 1275 lm | 45° | 1500 mm | |
| 90394-03-7-4 | 14W | DALI | 4000K | 1275 lm | 45° | 1500 mm | |
| 90394-03-4 | 14W | ND (On/Off) | 4000K | 1275 lm | 45° | 1500 mm | |
| 90395-03-7-3 | 21W | DALI | 3000K | 1910 lm | 45° | 2255 mm | |
| 90395-03-3 | 21W | ND (On/Off) | 3000K | 1910 lm | 45° | 2255 mm | |
| 90395-03-7-4 | 21W | DALI | 4000K | 1910 lm | 45° | 2255 mm | |
| 90395-03-4 | 21W | ND (On/Off) | 4000K | 1910 lm | 45° | 2255 mm | |
| 90396-03-7-3 | 26W | DALI | 3000K | 2550 lm | 45° | 2950 mm | |
| 90396-03-3 | 26W | ND (On/Off) | 3000K | 2550 lm | 45° | 2950 mm | |
| 90396-03-7-4 | 26W | DALI | 4000K | 2550 lm | 45° | 2950 mm | |
| 90396-03-4 | 26W | ND (On/Off) | 4000K | 2550 lm | 45° | 2950 mm | |
| 90397-03-7-3 | 33W | DALI | 3000K | 3185 lm | 45° | 3675 mm | |
| 90397-03-3 | 33W | ND (On/Off) | 3000K | 3185 lm | 45° | 3675 mm | |
| 90397-03-7-4 | 33W | DALI | 4000K | 3185 lm | 45° | 3675 mm | |
| 90397-03-4 | 33W | ND (On/Off) | 4000K | 3185 lm | 45° | 3675 mm | |
| 90398-03-7-3 | 8W | DALI | 3000K | 640 lm | Rak | 282 mm | |
| 90398-03-3 | 8W | ND (On/Off) | 3000K | 640 lm | Rak | 282 mm | |
| 90398-03-7-4 | 8W | DALI | 4000K | 640 lm | Rak | 282 mm | |
| 90398-03-4 | 8W | ND (On/Off) | 4000K | 640 lm | Rak | 282 mm | |
| 90399-03-7-3 | 14W | DALI | 3000K | 1275 lm | Rak | 565 mm | |
| 90399-03-3 | 14W | ND (On/Off) | 3000K | 1275 lm | Rak | 565 mm | |
| 90399-03-7-4 | 14W | DALI | 4000K | 1275 lm | Rak | 565 mm | |
| 90399-03-4 | 14W | ND (On/Off) | 4000K | 1275 lm | Rak | 565 mm | |
| 90400-03-7-3 | 21W | DALI | 3000K | 1910 lm | Rak | 845 mm | |
| 90400-03-3 | 21W | ND (On/Off) | 3000K | 1910 lm | Rak | 845 mm | |
| 90400-03-7-4 | 21W | DALI | 4000K | 1910 lm | Rak | 845 mm | |
| 90400-03-4 | 21W | ND (On/Off) | 4000K | 1910 lm | Rak | 845 mm | |
| 90401-03-7-3 | 26W | DALI | 3000K | 2550 lm | Rak | 1125 mm | |
| 90401-03-3 | 26W | ND (On/Off) | 3000K | 2550 lm | Rak | 1125 mm | |
| 90401-03-7-4 | 26W | DALI | 4000K | 2550 lm | Rak | 1125 mm | |
| 90401-03-4 | 26W | ND (On/Off) | 4000K | 2550 lm | Rak | 1125 mm | |
| 90402-03-7-3 | 33W | DALI | 3000K | 3185 lm | Rak | 1405 mm | |
| 90402-03-3 | 33W | ND (On/Off) | 3000K | 3185 lm | Rak | 1405 mm | |
| 90402-03-7-4 | 33W | DALI | 4000K | 3185 lm | Rak | 1405 mm | |
| 90402-03-4 | 33W | ND (On/Off) | 4000K | 3185 lm | Rak | 1405 mm | |
| 90403-03-7-3 | 39W | DALI | 3000K | 3820 lm | Rak | 1685 mm | |
| 90403-03-3 | 39W | ND (On/Off) | 3000K | 3820 lm | Rak | 1685 mm | |
| 90403-03-7-4 | 39W | DALI | 4000K | 3820 lm | Rak | 1685 mm | |
| 90403-03-4 | 39W | ND (On/Off) | 4000K | 3820 lm | Rak | 1685 mm | |
| 90404-03-7-3 | 47W | DALI | 3000K | 4455 lm | Rak | 1965 mm | |
| 90404-03-3 | 47W | ND (On/Off) | 3000K | 4455 lm | Rak | 1965 mm | |
| 90404-03-7-4 | 47W | DALI | 4000K | 4455 lm | Rak | 1965 mm | |
| 90404-03-4 | 47W | ND (On/Off) | 4000K | 4455 lm | Rak | 1965 mm | |
| 90405-03-7-3 | 53W | DALI | 3000K | 5095 lm | Rak | 2254 mm | |
| 90405-03-3 | 53W | ND (On/Off) | 3000K | 5095 lm | Rak | 2254 mm | |
| 90405-03-7-4 | 53W | DALI | 4000K | 5095 lm | Rak | 2254 mm | |
| 90405-03-4 | 53W | ND (On/Off) | 4000K | 5095 lm | Rak | 2254 mm | |
| 90406-03-7-3 | 60W | DALI | 3000K | 5730 lm | Rak | 2525 mm | |
| 90406-03-3 | 60W | ND (On/Off) | 3000K | 5730 lm | Rak | 2525 mm | |
| 90406-03-7-4 | 60W | DALI | 4000K | 5730 lm | Rak | 2525 mm | |
| 90406-03-4 | 60W | ND (On/Off) | 4000K | 5730 lm | Rak | 2525 mm | |
| 90407-03-7-3 | 66W | DALI | 3000K | 6365 lm | Rak | 2810 mm | |
| 90407-03-3 | 66W | ND (On/Off) | 3000K | 6365 lm | Rak | 2810 mm | |
| 90407-03-7-4 | 66W | DALI | 4000K | 6365 lm | Rak | 2810 mm | |
| 90407-03-4 | 66W | ND (On/Off) | 4000K | 6365 lm | Rak | 2810 mm | |
| 90408-03-7-3 | 14W | DALI | 3000K | 1275 lm | 1 | ||
| 90408-03-3 | 14W | ND (On/Off) | 3000K | 1275 lm | 1 | ||
| 90408-03-7-4 | 14W | DALI | 4000K | 1275 lm | 1 | ||
| 90408-03-4 | 14W | ND (On/Off) | 4000K | 1275 lm | 1 | ||
| 90409-03-7-3 | 21W | DALI | 3000K | 1910 lm | 2 | ||
| 90409-03-3 | 21W | ND (On/Off) | 3000K | 1910 lm | 2 | ||
| 90409-03-7-4 | 21W | DALI | 4000K | 1910 lm | 2 | ||
| 90409-03-4 | 21W | ND (On/Off) | 4000K | 1910 lm | 2 | ||
| 90410-03-7-3 | 21W | DALI | 3000K | 1910 lm | 3 | ||
| 90410-03-3 | 21W | ND (On/Off) | 3000K | 1910 lm | 3 | ||
| 90410-03-7-4 | 21W | DALI | 4000K | 1910 lm | 3 | ||
| 90410-03-4 | 21W | ND (On/Off) | 4000K | 1910 lm | 3 | ||
| 90411-03-7-3 | 21W | DALI | 3000K | 1910 lm | 4 | ||
| 90411-03-3 | 21W | ND (On/Off) | 3000K | 1910 lm | 4 | ||
| 90411-03-7-4 | 21W | DALI | 4000K | 1910 lm | 4 | ||
| 90411-03-4 | 21W | ND (On/Off) | 4000K | 1910 lm | 4 | ||
| 90412-03-7-3 | 26W | DALI | 3000K | 2550 lm | 5 | ||
| 90412-03-3 | 26W | ND (On/Off) | 3000K | 2550 lm | 5 | ||
| 90412-03-7-4 | 26W | DALI | 4000K | 2550 lm | 5 | ||
| 90412-03-4 | 26W | ND (On/Off) | 4000K | 2550 lm | 5 | ||
| 90413-03-7-3 | 26W | DALI | 3000K | 2550 lm | 6 | ||
| 90413-03-3 | 26W | ND (On/Off) | 3000K | 2550 lm | 6 | ||
| 90413-03-7-4 | 26W | DALI | 4000K | 2550 lm | 6 | ||
| 90413-03-4 | 26W | ND (On/Off) | 4000K | 2550 lm | 6 | ||
| 90414-03-7-3 | 26W | DALI | 3000K | 2550 lm | 7 | ||
| 90414-03-3 | 26W | ND (On/Off) | 3000K | 2550 lm | 7 | ||
| 90414-03-7-4 | 26W | DALI | 4000K | 2550 lm | 7 | ||
| 90414-03-4 | 26W | ND (On/Off) | 4000K | 2550 lm | 7 |
