BRSB LED Plafond

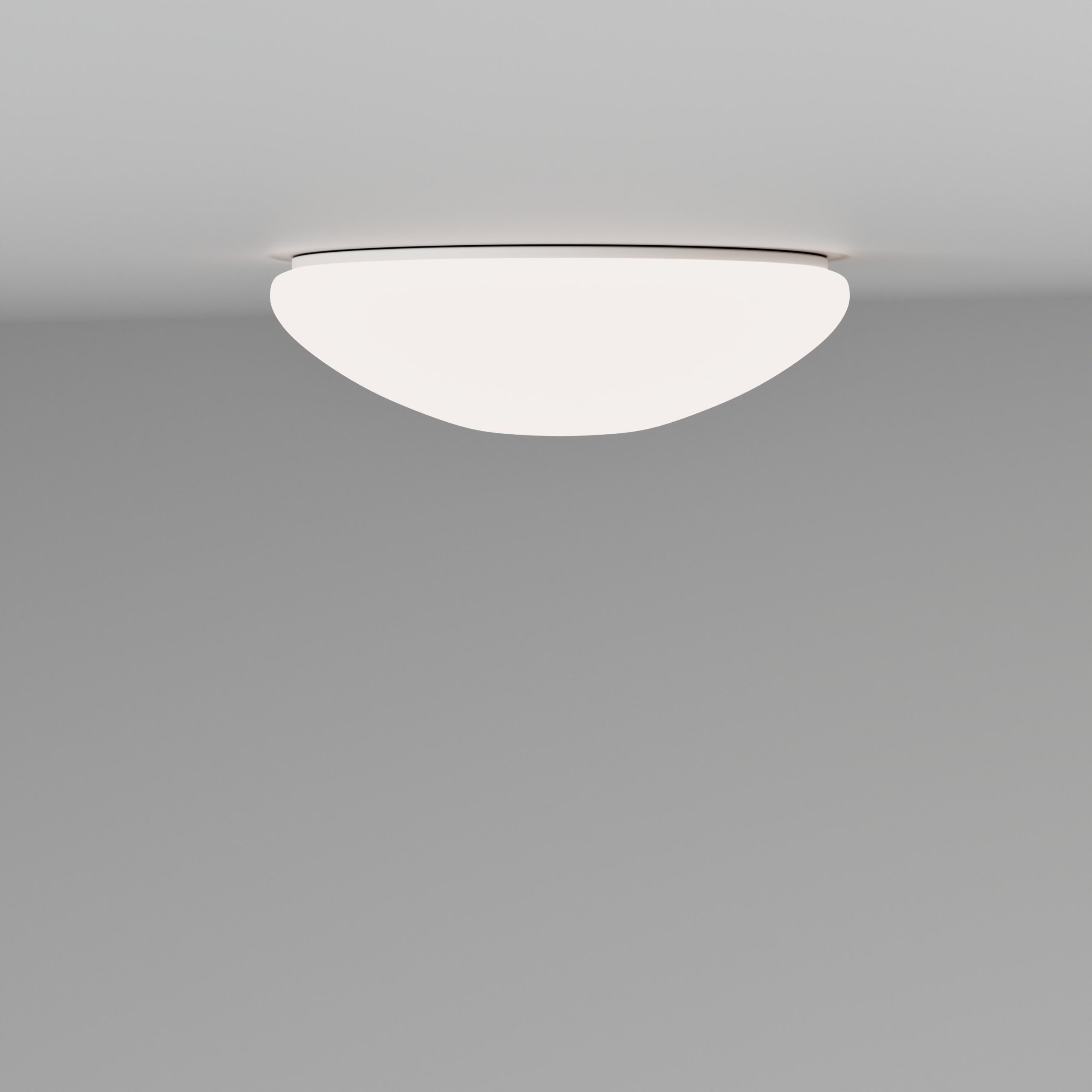

BRSB LED Plafond – IP44 för installation dikt tak/vägg.
Mid Power LED med drivdon 2…varmvit 3000K 3…kallvit 4000K 5…dagsljus 5700K.
Ljusstyrning / Förklaring:
- ND – Ej dimbar – standard
- ND3F – Ej dimbar 3-fas (plintar för 5-ledare)
- DALI – Dimbar DALI
- DIM – Dimbar 1-10V
- CF – korridorfunktion med Mikrovågssensor 10-100% (master – slav)
- CFRF – Korridorfunktion Trådlös / Radiosignal med Mikrovågssensor 10-30-50-70 och 100% (master – slav)
- MK-SENS – Integrerad aktiv närvarodetektor/Mikrovågssensor – ( master)
- NZ – Nödljus batteri-backup på begäran (Ø375 & Ø480 mm) Ca 350lm med Nödljus
- PIR-SENS Integrerad aktiv PiR-sensor Master på begäran (Max 5 st armaturer/grupp)
Varianter:
- Liten (Ø 285 mm)
- Mellanstor (Ø 375 mm)
- Stor (Ø 480 mm)
- Speciell variant med 100.000 hours L80 / B10 (7 års garanti)
| Art nr. | Se artiklar > |
|---|---|
| Användningsområden | |
| E-nummer |
7509125| 7509126| 7509127| 7509128| 7509321| 7509322| 7509323| 7509324| 7509130| 7509131| 7509132| 7509133| 7509134| 7509135| 7509136| 7509137| 7509325| 7509326| 7509327| 7509328| 7509138| 7509139| 7509140| 7509141| 7509329| 7509330| 7509142| 7509143| 7509144| 7509145| 7509331| 7509332| 7509333| 7509334| 7509146| 7509147| 7509148| 7509149| 7509335| 7509336| 7509337| 7509338| 7509150| 7509151| 7509339| 7509340| 7509341| 7509342| 7509152| 7509153| 7509154| 7509155| 7509343| 7509344| 7509156| 7509157| 7509345| 7509346| 7509347| 7509348| 7509158| 7509159| 7509160| 7509161| 7509349| 7509350| 7509351| 7509352| 7509353| 7509354| 7509355| 7509356| 7509357| 7509358| 7509162| 7509163| 7509164| 7509165| 7509359| 7509360 |
| Material | Vitmålad plåt (RAL 9003) |
| Optik |
KO – Opal PMMA hölje| KOPC -Opal polykarbonat hölje |
| Montering |

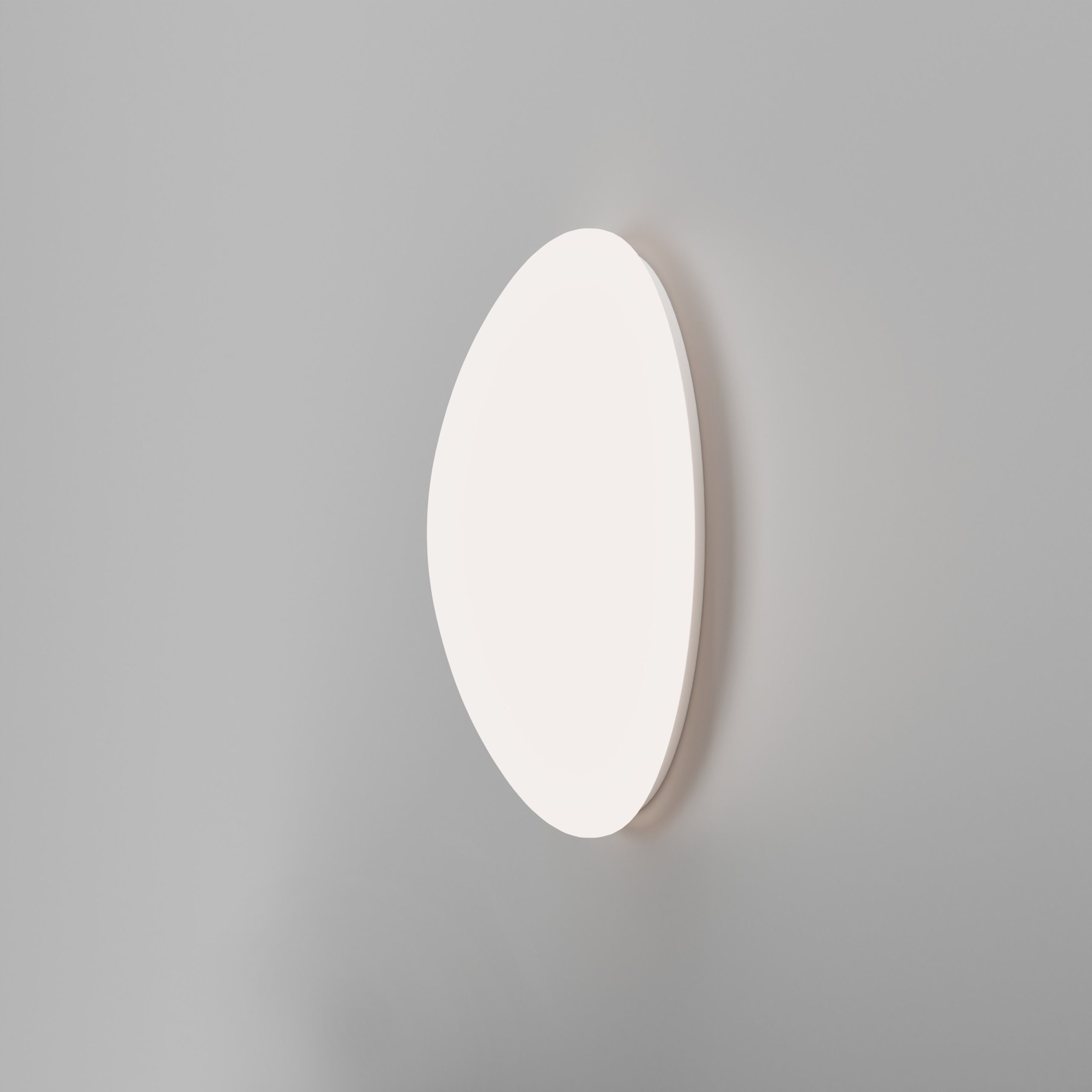

Dikt tak| Dikt vägg |
| Effekt (Watt) | 9W|14W| - 20W|27W|34W|44W |
| Styrning |
PiR-SENS| DALI| DIM (1-10V)| EVG| ND (On/Off)| ND – 3Fas| CF-RF| MK SENS| CF |
| Livslängd |
50000h (L80B50) |
| Färgtemperatur (CCT) | 3000K|4000K |
| Lumen (lm) | 900lm|1400lm| - 2000lm|2700lm|3600lm|4600lm |
| IP-class |
IP40| IP44 |
| Spänning |
230V 50Hz |
| Diameter (mm) | 285mm|375mm| - 480mm |
| Markings | |
| Vikt | 1kg|1.6kg| - 2.3kg |
Avsäkringstabell
| Type | B10A | B16A | B20A | B25A | C10A | C16A | C20A | C25A |
|---|---|---|---|---|---|---|---|---|
| BRSB 14 W ND | 32 | 50 | 78 | 52 | 85 | 130 | ||
| BRSB 14 W DALI | 20 | 33 | 51 | 34 | 56 | 86 | ||
| BRSB 20 W ND | 38 | 60 | 93 | 62 | 102 | 156 | ||
| BRSB 20 W DALI | 20 | 33 | 51 | 34 | 56 | 86 | ||
| BRSB 27 W ND | 27 | 43 | 67 | 44 | 74 | 111 | ||
| BRSB 27 W DALI | 20 | 33 | 51 | 34 | 56 | 86 | ||
| BRSB 34 W ND | 19 | 30 | 46 | 31 | 51 | 78 | ||
| BRSB 34 W DALI | 27 | 43 | 67 | 44 | 73 | 111 | ||
| BRSB 9 W ND | 50 | 78 | 121 | 84 | 130 | 202 |
Art. nr | E-nummer | Effekt | Styrning | CCT | Lumen | Diameter | Vikt |
|---|---|---|---|---|---|---|---|
| 129111-M-3 | saknas | 27W | PiR-SENS | 3000K | 2700 lm | 375 mm | 1.6 kg |
| 129211-M-3 | saknas | 34W | PiR-SENS | 3000K | 3600 lm | 480 mm | 2.3 kg |
| 129011-M-3 | saknas | 14W | PiR-SENS | 3000K | 1400 lm | 285 mm | 1 kg |
| 1289-3 | 75 091 25 | 9W | ND (On/Off) | 3000K | 900 lm | 285 mm | 1 kg |
| 1289-4 | 75 091 26 | 9W | ND (On/Off) | 4000K | 900 lm | 285 mm | 1 kg |
| 1290-3 | 75 091 27 | 14W | ND (On/Off) | 3000K | 1400 lm | 285 mm | 1 kg |
| 1290-4 | 75 091 28 | 14W | ND (On/Off) | 4000K | 1400 lm | 285 mm | 1 kg |
| 2438-3 | 75 093 21 | 20W | ND (On/Off) | 3000K | 2000 lm | 285 mm | 1 kg |
| 2438-4 | 75 093 22 | 20W | ND (On/Off) | 4000K | 2000 lm | 285 mm | 1 kg |
| 2208-3 | 75 093 23 | 20W | ND (On/Off) | 3000K | 2000 lm | 375 mm | 1.6 kg |
| 2208-4 | 75 093 24 | 20W | ND (On/Off) | 4000K | 2000 lm | 375 mm | 1.6 kg |
| 1291-3 | 75 091 30 | 27W | ND (On/Off) | 3000K | 2700 lm | 375 mm | 1.6 kg |
| 1291-4 | 75 091 31 | 27W | ND (On/Off) | 4000K | 2700 lm | 375 mm | 1.6 kg |
| 1292-3 | 75 091 32 | 34W | ND (On/Off) | 3000K | 3600 lm | 480 mm | 2.3 kg |
| 1292-4 | 75 091 33 | 34W | ND (On/Off) | 4000K | 3600 lm | 480 mm | 2.3 kg |
| 12893F-3 | 75 091 34 | 9W | ND - 3Fas | 3000K | 900 lm | 285 mm | 1 kg |
| 12893F-4 | 75 091 35 | 9W | ND - 3Fas | 4000K | 900 lm | 285 mm | 1 kg |
| 12903F-3 | 75 091 36 | 14W | ND - 3Fas | 3000K | 1400 lm | 285 mm | 1 kg |
| 12903F-4 | 75 091 37 | 14W | ND - 3Fas | 4000K | 1400 lm | 285 mm | 1 kg |
| 24383F-3 | 75 093 25 | 20W | ND - 3Fas | 3000K | 2000 lm | 285 mm | 1 kg |
| 24383F-4 | 75 093 26 | 20W | ND - 3Fas | 4000K | 2000 lm | 285 mm | 1 kg |
| 22083F-3 | 75 093 27 | 20W | ND - 3Fas | 3000K | 2000 lm | 375 mm | 1.6 kg |
| 22083F-4 | 75 093 28 | 20W | ND - 3Fas | 4000K | 2000 lm | 375 mm | 1.6 kg |
| 12913F-3 | 75 091 38 | 27W | ND - 3Fas | 3000K | 2700 lm | 375 mm | 1.6 kg |
| 12913F-4 | 75 091 39 | 27W | ND - 3Fas | 4000K | 2700 lm | 375 mm | 1.6 kg |
| 12923F-3 | 75 091 40 | 34W | ND - 3Fas | 3000K | 3600 lm | 480 mm | 2.3 kg |
| 12923F-4 | 75 091 41 | 34W | ND - 3Fas | 4000K | 3600 lm | 480 mm | 2.3 kg |
| 24393F-3 | 75 093 29 | 44W | ND - 3Fas | 3000K | 4600 lm | 480 mm | 2.3 kg |
| 21393F-4 | 75 093 30 | 44W | ND - 3Fas | 4000K | 4600 lm | 480 mm | 2.3 kg |
| 12891-M-3 | 75 091 42 | 9W | MK SENS | 3000K | 900 lm | 285 mm | 1 kg |
| 12891-M-4 | 75 091 43 | 9W | MK SENS | 4000K | 900 lm | 285 mm | 1 kg |
| 12901-M-3 | 75 091 44 | 14W | MK SENS | 3000K | 1400 lm | 285 mm | 1 kg |
| 12901-M-4 | 75 091 45 | 14W | MK SENS | 4000K | 1400 lm | 285 mm | 1 kg |
| 24381-M-3 | 75 093 31 | 20W | MK SENS | 3000K | 2000 lm | 285 mm | 1 kg |
| 24381-M-4 | 75 093 32 | 20W | MK SENS | 4000K | 2000 lm | 285 mm | 1 kg |
| 22081-M-3 | 75 093 33 | 20W | MK SENS | 3000K | 2000 lm | 375 mm | 1.6 kg |
| 22081-M-4 | 75 093 34 | 20W | MK SENS | 4000K | 2000 lm | 375 mm | 1.6 kg |
| 12911-M-3 | 75 091 46 | 27W | MK SENS | 3000K | 2700 lm | 375 mm | 1.6 kg |
| 12911-M-4 | 75 091 47 | 27W | MK SENS | 4000K | 2700 lm | 375 mm | 1.6 kg |
| 12921-M-3 | 75 091 48 | 34W | MK SENS | 3000K | 3600 lm | 480 mm | 2.3 kg |
| 12921-M-4 | 75 091 49 | 34W | MK SENS | 4000K | 3600 lm | 480 mm | 2.3 kg |
| 24391-M-3 | 75 093 35 | 44W | MK SENS | 3000K | 4600 lm | 480 mm | 2.3 kg |
| 24391-M-4 | 75 093 36 | 44W | MK SENS | 4000K | 4600 lm | 480 mm | 2.3 kg |
| 128971-M-3 | 75 093 37 | 9W | CF | 3000K | 900 lm | 285 mm | 1 kg |
| 128971-M-4 | 75 093 38 | 9W | CF | 4000K | 900 lm | 285 mm | 1 kg |
| 129071-M-3 | 75 091 50 | 14W | CF | 3000K | 1400 lm | 285 mm | 1 kg |
| 129071-M-4 | 75 091 51 | 14W | CF | 4000K | 1400 lm | 285 mm | 1 kg |
| 243871-M-3 | 75 093 39 | 20W | CF | 3000K | 2000 lm | 285 mm | 1 kg |
| 243871-M-4 | 75 093 40 | 20W | CF | 4000K | 2000 lm | 285 mm | 1 kg |
| 220871-M-3 | 75 093 41 | 20W | CF | 3000K | 2000 lm | 375 mm | 1.6 kg |
| 220871-M-4 | 75 093 42 | 20W | CF | 4000K | 2000 lm | 375 mm | 1.6 kg |
| 129171-M-3 | 75 091 52 | 27W | CF | 3000K | 2700 lm | 375 mm | 1.6 kg |
| 129171-M-4 | 75 091 53 | 27W | CF | 4000K | 2700 lm | 375 mm | 1.6 kg |
| 129271-M-3 | 75 091 54 | 34W | CF | 3000K | 3600 lm | 480 mm | 2.3 kg |
| 129271-M-4 | 75 091 55 | 34W | CF | 4000K | 3600 lm | 480 mm | 2.3 kg |
| 12897-3 | 75 093 43 | 9W | DALI | 3000K | 900 lm | 285 mm | 1 kg |
| 12897-4 | 75 093 44 | 9W | DALI | 4000K | 900 lm | 285 mm | 1 kg |
| 12907-3 | 75 091 56 | 14W | DALI | 3000K | 1400 lm | 285 mm | 1 kg |
| 12907-4 | 75 091 57 | 14W | DALI | 4000K | 1400 lm | 285 mm | 1 kg |
| 24387-3 | 75 093 45 | 20W | DALI | 3000K | 2000 lm | 285 mm | 1 kg |
| 24387-4 | 75 093 46 | 20W | DALI | 4000K | 2000 lm | 285 mm | 1 kg |
| 22087-3 | 75 093 47 | 20W | DALI | 3000K | 2000 lm | 375 mm | 1.6 kg |
| 22087-4 | 75 093 48 | 20W | DALI | 4000K | 2000 lm | 375 mm | 1.6 kg |
| 12917-3 | 75 091 58 | 27W | DALI | 3000K | 2700 lm | 375 mm | 1.6 kg |
| 12917-4 | 75 091 59 | 27W | DALI | 4000K | 2700 lm | 375 mm | 1.6 kg |
| 12927-3 | 75 091 60 | 34W | DALI | 3000K | 3600 lm | 480 mm | 2.3 kg |
| 12927-4 | 75 091 61 | 34W | DALI | 4000K | 3600 lm | 480 mm | 2.3 kg |
| 24397-3 | 75 093 49 | 44W | DALI | 3000K | 4600 lm | 480 mm | 2.3 kg |
| 24397-4 | 75 093 50 | 44W | DALI | 4000K | 4600 lm | 480 mm | 2.3 kg |
| 22087-HC028-3 | 75 093 57 | 20W | CF-RF | 3000K | 2000 lm | 375 mm | 1.6 kg |
| 22087-HC028-4 | 75 093 58 | 20W | CF-RF | 4000K | 2000 lm | 375 mm | 1.6 kg |
| 12917-HC028-3 | 75 091 62 | 27W | CF-RF | 3000K | 2700 lm | 375 mm | 1.6 kg |
| 12917-HC028-4 | 75 091 63 | 27W | CF-RF | 4000K | 2700 lm | 375 mm | 1.6 kg |
| 12927-HC028-3 | 75 091 64 | 34W | CF-RF | 3000K | 3600 lm | 480 mm | 2.3 kg |
| 12927-HC028-4 | 75 091 65 | 34W | CF-RF | 4000K | 3600 lm | 480 mm | 2.3 kg |
| 24397-HC028-3 | 75 093 59 | 44W | CF-RF | 3000K | 4600 lm | 480 mm | 2.3 kg |
| 24397-HC028-4 | 75 093 60 | 44W | CF-RF | 4000K | 4600 lm | 480 mm | 2.3 kg |
