SPMP LED
| Art nr. | Se artiklar > |
|---|---|
| Användningsområden | | | |
| Material | Vitmålad metall |
| Färg |

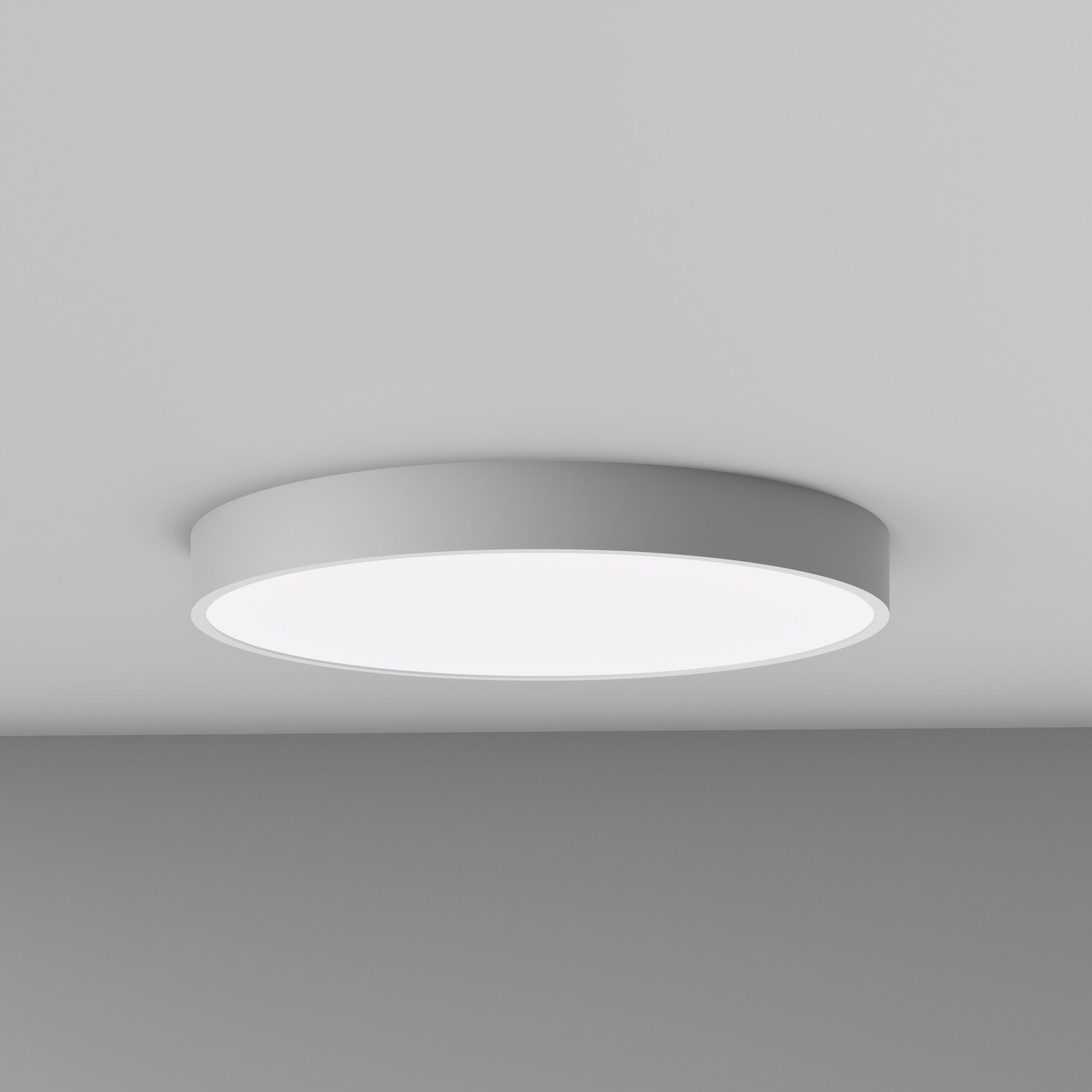

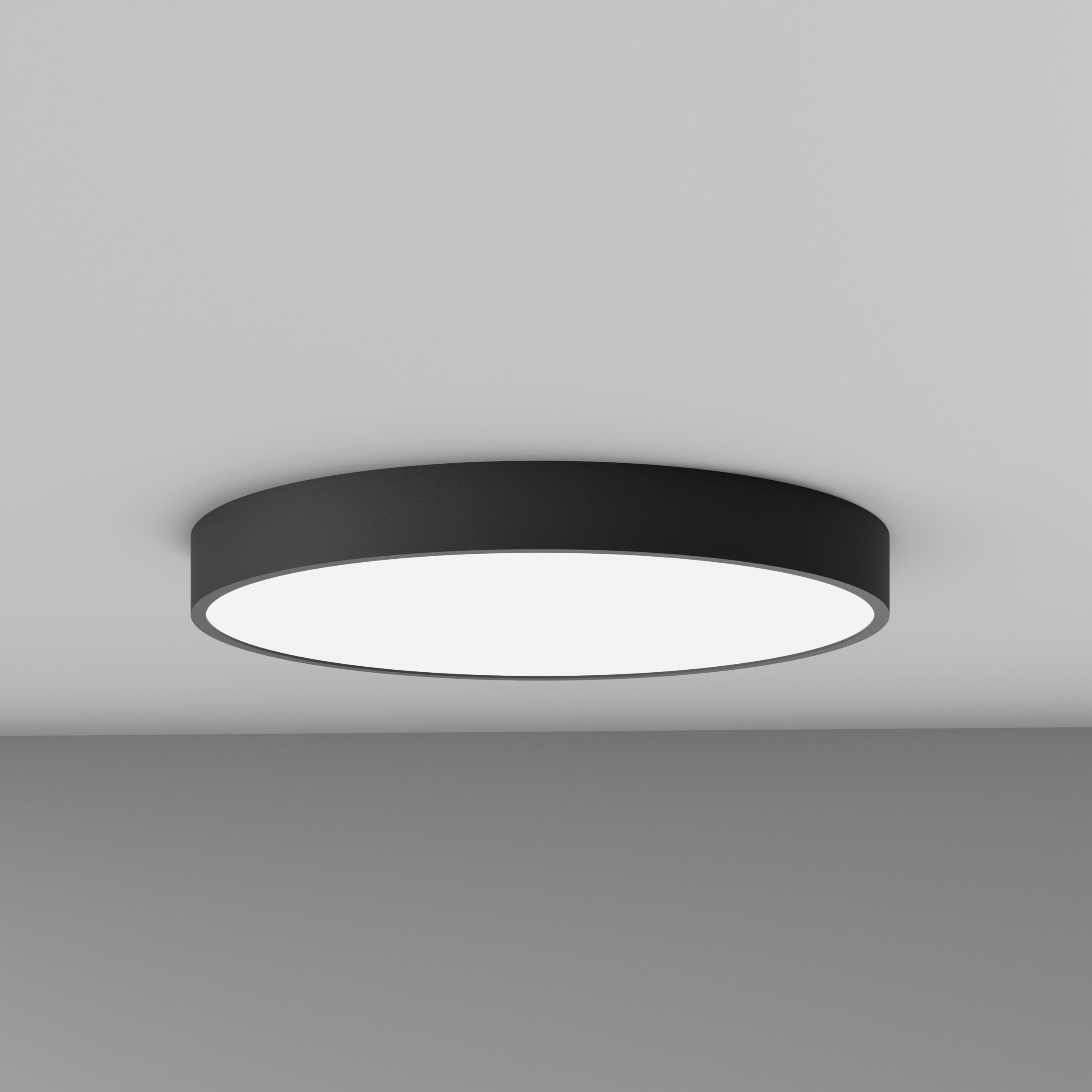

Vit |Svart |
| Optik | Genomskinligt akrylskikt med mikroprismatisk hölje |
| Montering |
Dikt tak |Pendlade -nerljus |
| Effekt (Watt) | 14W | 22W | - 28W | 34W | 36W | 40W |
| Styrning |
DALI |EVG |ND (On/Off) |
| Livslängd |
80000h (L80b50) |
| Färgtemperatur (CCT) | 3000K | 4000K |
| Lumen (lm) | 1100lm | 1800lm | - 2600lm | 3200lm | 3400lm | 3900lm |
| Lumen per Watt (lm/W) | 79lm/W | 82lm/W | - 89lm/W | 93lm/W | 98lm/W| 100lm/W |
| IP-class |
IP20 |
| Spänning |
230V 50Hz |
| BVB ID | 106077 |
| Diameter (mm) | 190mm | 370mm | - 550mm |
| Höjd | 41mm|45mm |
| Dimensioner | N/A |
| Markings | | | |
Avsäkringstabell
| Type | B10A | B16A | B20A | B25A | C10A | C16A | C20A | C25A |
|---|---|---|---|---|---|---|---|---|
| SPMP 14W ND | 32 | 50 | ||||||
| SPMP 14W DALI | 45 | 80 | ||||||
| SPMP 22W ND | 38 | 60 | ||||||
| SPMP 22W DALI | 50 | 80 | ||||||
| SPMP 28W ND | 76 | 100 | 123 | |||||
| SPMP 28W DALI | 50 | 80 | ||||||
| SPMP 36W ND | 19 | 30 | ||||||
| SPMP 36W DALI | 35 | 55 |
Art. nr | Effekt | Styrning | CCT | Lumen | lm/W | Diameter | Höjd |
|---|---|---|---|---|---|---|---|
| 1299-3 | 14W | ND (On/Off) | 3000K | 1100 lm | 79 lm/W | 190 mm | 41 mm |
| 2470-4 | 34W | ND (On/Off) | 4000K | 3400 lm | 100 lm/W | 550 mm | 45 mm |
| 1299-4 | 14W | ND (On/Off) | 4000K | 1100 lm | 79 lm/W | 190 mm | 41 mm |
| 2471-3 | 40W | ND (On/Off) | 3000K | 3900 lm | 98 lm/W | 550 mm | 45 mm |
| 1300-3 | 22W | ND (On/Off) | 3000K | 1800 lm | 82 lm/W | 190 mm | 41 mm |
| 2471-4 | 40W | ND (On/Off) | 4000K | 3900 lm | 98 lm/W | 550 mm | 45 mm |
| 1300-4 | 22W | ND (On/Off) | 4000K | 1800 lm | 82 lm/W | 190 mm | 41 mm |
| 12997-3 | 14W | DALI | 3000K | 1100 lm | 79 lm/W | 190 mm | 41 mm |
| 1854-3 | 28W | ND (On/Off) | 3000K | 2600 lm | 93 lm/W | 370 mm | 45 mm |
| 12997-4 | 14W | DALI | 4000K | 1100 lm | 79 lm/W | 190 mm | 41 mm |
| 1854-4 | 28W | ND (On/Off) | 4000K | 2600 lm | 93 lm/W | 370 mm | 45 mm |
| 13007-3 | 22W | DALI | 3000K | 1800 lm | 82 lm/W | 190 mm | 41 mm |
| 1855-3 | 36W | ND (On/Off) | 3000K | 3200 lm | 89 lm/W | 370 mm | 45 mm |
| 13007-4 | 22W | DALI | 4000K | 1800 lm | 82 lm/W | 190 mm | 41 mm |
| 1855-4 | 36W | ND (On/Off) | 4000K | 3200 lm | 89 lm/W | 370 mm | 45 mm |
| 18547-3 | 28W | DALI | 3000K | 2600 lm | 93 lm/W | 370 mm | 45 mm |
| 2470-3 | 34W | ND (On/Off) | 3000K | 3400 lm | 100 lm/W | 550 mm | 45 mm |
| 18547-4 | 28W | DALI | 4000K | 2600 lm | 93 lm/W | 370 mm | 45 mm |
| 18557-3 | 36W | DALI | 3000K | 3200 lm | 89 lm/W | 370 mm | 45 mm |
| 18557-4 | 36W | DALI | 4000K | 3200 lm | 89 lm/W | 370 mm | 45 mm |
| 24707-3 | 34W | DALI | 3000K | 3400 lm | 100 lm/W | 550 mm | 45 mm |
| 24707-4 | 34W | DALI | 4000K | 3400 lm | 100 lm/W | 550 mm | 45 mm |
| 24717-3 | 40W | DALI | 3000K | 3900 lm | 98 lm/W | 550 mm | 45 mm |
| 24717-4 | 40W | DALI | 4000K | 3900 lm | 98 lm/W | 550 mm | 45 mm |
